Salamanders & Cheese Melters
Salamander Broilers & Cheese Melters
36" · infrared · 35,000 BTU/h
Infrared finishing for steaks, casseroles and sandwiches. Mount on a countertop, a wall or directly over a range.
Certification
CSANSF
2 models
CP-SM36CP-CMG-36
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 35,000 BTU/h (NG) / 32,000 BTU/h (LP) infrared burner
- 3-position spring-balanced rack with ball-grip handle (salamander)
- Full-width broiler pan
- Ready to mount over 36", 48" and 60" ranges
- 4" adjustable legs for countertop use
- Wall-mount and range-mount kits available
At a glance
- Product family
- Salamanders & Cheese Melters
- Models in series
- 2
- Market
- North America
- Certification
- CSA, NSF
- Gas
- NG / LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Total BTU | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|
| CP-SM36 | NG / LP | 35,000/32,000 | 36"×23.9"×17.7"91.4×60.8×45cm | 128 lbs / 58 kg | 39"×26.4"×23.6"99×67×60cm | 186 lbs / 85 kg | |
| CP-CMG-36 | NG / LP | 35,000/32,000 | 36"×17.8"×17.7"91.4×45.3×45cm | 101 lbs / 46 kg | 39"×22.9"×23.6"99×58×60cm | 153 lbs / 70 kg |

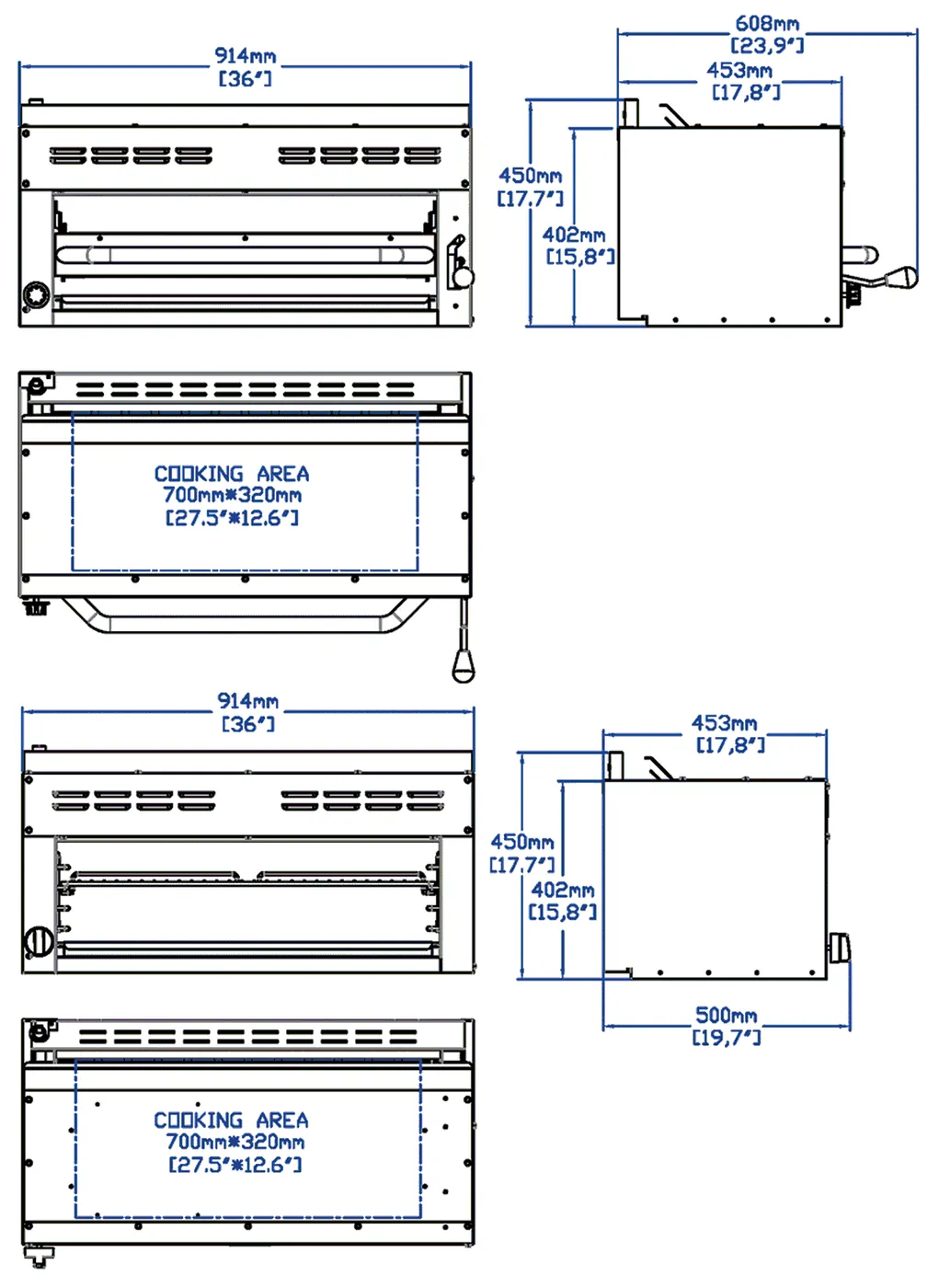

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
- Natural gas: operating pressure 5.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- A gas pressure regulator supplied with unit must be installed
- An adequate ventilation system is required for Commercial Cooking Equipment
- 6" clearance required at both sides and rear from combustible construction.
- Assembly examples with 36" range and with 60" range
Options & accessories
- SM36-WMK for direct wall mounting under exhaust hood (option - accessory)
- SM36-RA for direct gas range mounting under exhaust hood (option - accessory)
