Split-Tank Gas Fryer
Twin tanks · 4 tubes · 120,000 BTU/h
Two independent fry tanks in one cabinet, each with its own gas control, so you can fry different products side by side without flavor transfer.
Certification
CSANSF
2 models
CP-F4D-NGCP-F4D-LP
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 4 tubes, 120,000 BTU/h total input
- Two independent gas control systems for the split tanks
- Snap-action millivolt thermostat, no electrical connection required
- Thermostat range 200–400°F (93–205°C)
- High-limit safety cuts the gas at 450°F (232°C)
- Peened stainless steel fry tanks
- Twin baskets with coated handles; stainless steel adjustable legs
At a glance
- Product family
- Fryers & Pasta Cookers
- Models in series
- 2
- Market
- North America
- Certification
- CSA, NSF
- Gas
- NG · LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Burners | Total BTU | Oil Capacity | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| CP-F4D-NG | NG | 4 | 120,000 | 37×2 lbs (18~19) x2 L | 21"×34.4"×45.3"53.4×87.3×115cm | 192 lbs / 87 kg | 22.5"×36.3"×33.5"57×92×85cm | 225 lbs / 103 kg | |
| CP-F4D-LP | LP | 4 | 120,000 | 37×2 lbs (18~19) x2 L | 21"×34.4"×45.3"53.4×87.3×115cm | 192 lbs / 87 kg | 22.5"×36.3"×33.5"57×92×85cm | 225 lbs / 103 kg |

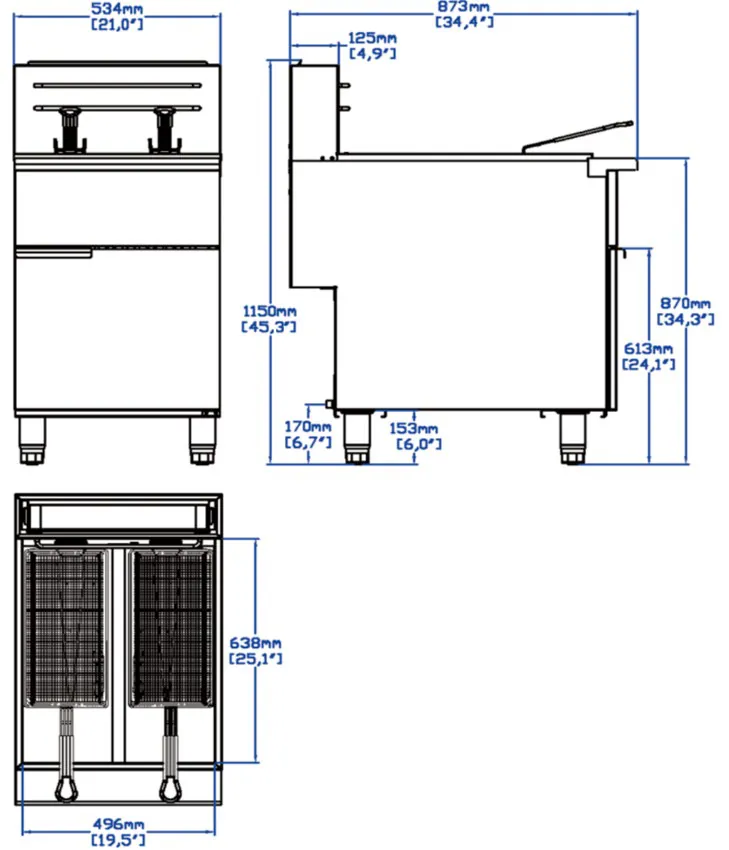

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- Two gas supply pipes,1/2" or 3/4" NPT rear gas connections Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
- Natural gas: operating pressure 4.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- High-altitude orifices: Natural gas for above 2,000 ft; Propane gas for above 3,500 ft
- An adequate ventilation system is required for Commercial Cooking Equipment
- 6" clearance required at both sides and rear from combustible construction.
- Conversion kits are not supplied; specify the gas type when ordering
Quote this series with your market configuration
Tell us the models, quantities, gas type or voltage, and destination. We reply with pricing, spec sheets and certification details.
