High-Output Split-Tank Gas Fryer

Name: SWENZA High-Output Split-Tank Gas Fryer
Brand: SWENZA

6 fire tubes · 180,000 BTU/h

Six fire tubes deliver 180,000 BTU/h across two independently controlled tanks, built for high-volume fry stations.

2 models

CP-F6D-NGCP-F6D-LP

Request a quotation WhatsApp

Key features

Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.

Model	Gas Type	Burners	Total BTU	Oil Capacity	Overall Dimensions	Net Weight	Package Size	Shipping Weight	Add to inquiry

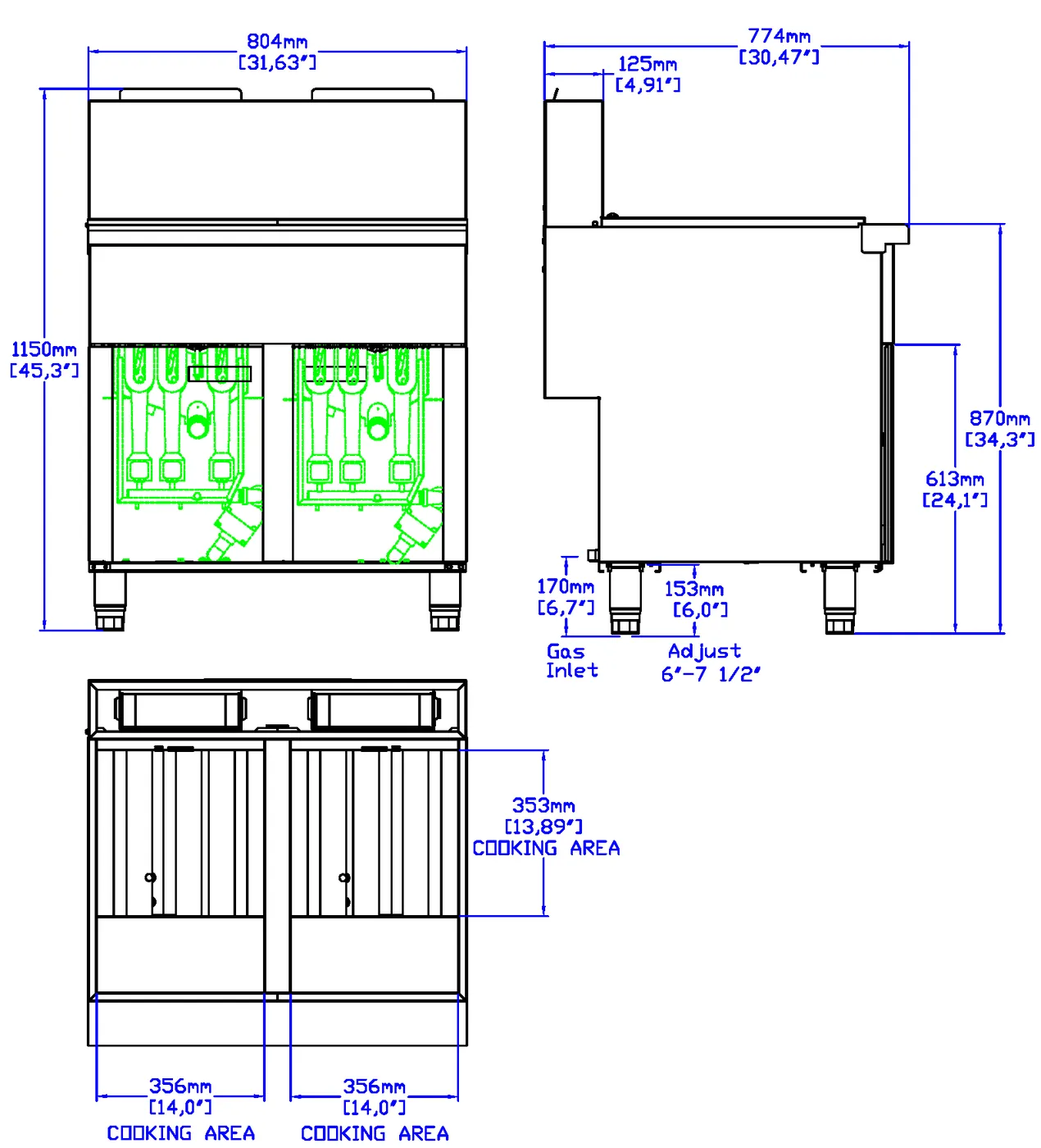

CP-F6D-NG	NG	6	180,000	37×2 lbs (18~19) x2 L	31.63"×30.47"×45.3"80.4×77.4×115cm	205 lbs / 93 kg	33"×36.3"×33.5"84×92×85cm	249 lbs / 113 kg
CP-F6D-LP	LP	6	180,000	37×2 lbs (18~19) x2 L	31.63"×30.47"×45.3"80.4×77.4×115cm	205 lbs / 93 kg	33"×36.3"×33.5"84×92×85cm	249 lbs / 113 kg

For commercial installation only; not intended for household use.
Two gas supply pipes,1/2" or 3/4" NPT rear gas connections Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
Natural gas: operating pressure 4.0" W.C., recommended supply 7–9" W.C.
Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
High-altitude orifices: Natural gas for above 2,000 ft; Propane gas for above 3,500 ft
An adequate ventilation system is required for Commercial Cooking Equipment
6" clearance required at both sides and rear from combustible construction.
Conversion kits are not supplied; specify the gas type when ordering
