North AmericaGas Fryers · Millivolt Control
3, 4 & 5 tube · 90,000–150,000 BTU/h
6 models
Details
Fryers & Pasta Cookers
Open-Pot Gas Fryers
40 & 50 lb · 100,000–122,000 BTU/h
No tubes inside the frypot: heat transfers through the outside walls, leaving an open pot that is fast to wipe clean.
Certification
ETLNSF
2 models
CP-VF40CP-VF50
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- Open-pot design with no internal obstructions
- 40 lb (100,000 BTU/h) and 50 lb (122,000 BTU/h) models
- Snap-action millivolt thermostat, no electrical connection required
- Thermostat range 200–400°F (93–205°C); 450°F high-limit gas cut-off
- Large cold zone traps crumbs and reduces taste transfer
- 1-1/4" full-port drain valve; twin baskets
At a glance
- Product family
- Fryers & Pasta Cookers
- Models in series
- 2
- Market
- North America
- Certification
- ETL, NSF
- Gas
- NG · LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Total BTU | Oil Capacity | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| CP-VF40 | NG | 100,000 | 40-50 lbs / 18-21 L | 15.5"×30.2"×45.3"39.4×76.7×115cm | 137.5 lbs / 62.5 kg | 16.6"×32.3"×33.5"42×82×85cm | 156 lbs / 71 kg | |
| CP-VF40 | LP | 100,000 | 40-50 lbs / 18-21 L | 15.5"×30.2"×45.3"39.4×76.7×115cm | 137.5 lbs / 62.5 kg | 16.6"×32.3"×33.5"42×82×85cm | 156 lbs / 71 kg | |
| CP-VF50 | NG | 122,000 | 50-60 lbs / 21.5-25 L | 15.5"×30.2"×45.3"39.4×76.7×115cm | 145 lbs / 66 kg | 16.6"×32.3"×33.5"42×82×85cm | 163 lbs / 74 kg | |
| CP-VF50 | LP | 122,000 | 50-60 lbs / 21.5-25 L | 15.5"×30.2"×45.3"39.4×76.7×115cm | 145 lbs / 66 kg | 16.6"×32.3"×33.5"42×82×85cm | 163 lbs / 74 kg |

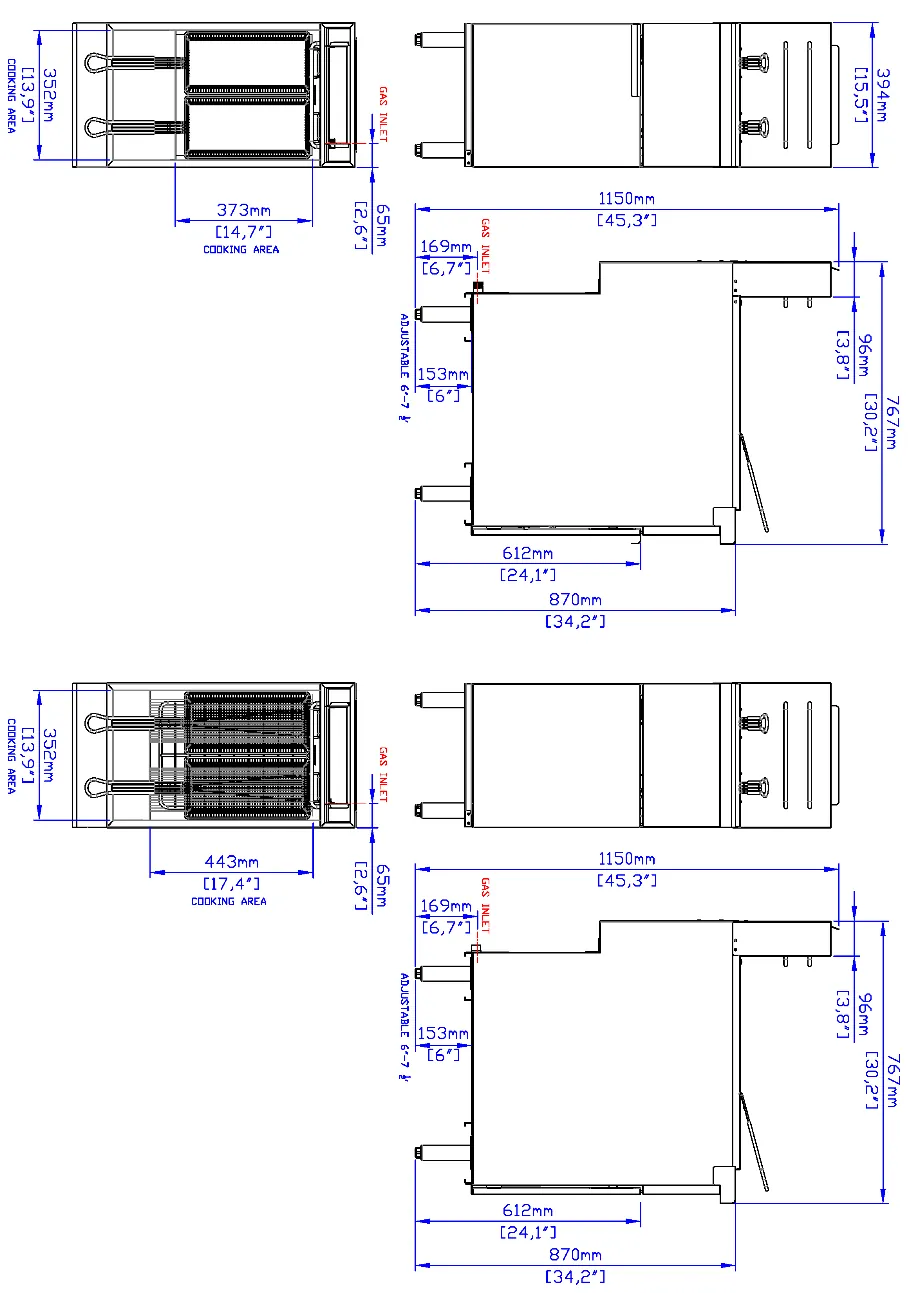

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
- Natural gas: operating pressure 4.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- High-altitude orifices: Natural gas for above 2,000 ft; Propane gas for above 3,500 ft
- 6" clearance required at both sides and rear from combustible construction.
- Conversion kits are not supplied; specify the gas type when ordering
Options & accessories
- Caster set (2 locking, 2 non-locking)
- Tank cleaning set (rod/brush/scoop)
- Side Splash
- Tank Cover for 40/50 lbs fryer
- Tank Cover for 75 lbs fryer
- Connector Strip for 40/50 lbs fryer
- Connector Strip for 75 lbs fryer
Quote this series with your market configuration
Tell us the models, quantities, gas type or voltage, and destination. We reply with pricing, spec sheets and certification details.
