Outdoor Cooking
Commercial Outdoor Grills
30" – 72" · all 304 stainless steel
Commercial outdoor grills built entirely from 304 stainless steel, from the body to the burners and fasteners.
Certification
ETLETL Sanitation
5 models
CP-BQ30CP-BQ36CP-BQ48CP-BQ60CP-BQ72
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- Body, grates, burners, radiants and fasteners all 304 stainless steel
- 16,000 BTU/h burner every 5.75" for an even heat pattern
- Reaches cooking temperature within 5 minutes
- LP models: two-stage regulator and built-in 20 lb tank holder
- NG models: 12 ft quick-disconnect hose
- Roll dome and side shelves available
At a glance
- Product family
- Outdoor Cooking
- Models in series
- 5
- Market
- North America
- Certification
- ETL, ETL Sanitation
- Gas
- NG/LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Burners | Total BTU | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| CP-BQ30 | NG/LP | 4 | 64,000 | 29.5"×30.3"×34.8"75×77×88.4cm | 119 lbs / 54 kg | 33.5"×26.4"×20"85×67×47cm | 125 lbs / 56.5 kg | |
| CP-BQ36 | NG/LP | 5 | 80,000 | 35.4"×30.3"×34.8"90×77×88.4cm | 136 lbs / 62 kg | 39.4"×26.4"×20"100×67×47cm | 143 lbs / 65 kg | |
| CP-BQ48 | NG/LP | 6 | 96,000 | 47.2"×30.3"×34.80"120×77×88.4cm | 161 lbs / 76 kg | 51.2"×26.6"×22.8"130×67.5×58cm | 194 lbs / 88 kg | |
| CP-BQ60 | NG/LP | 8 | 128,000 | 60.2"×30.3"×34.8"152.8×77×88.4cm | 209 lbs / 95 kg | 67"×26.6"×22.8"170×67.5×58cm | 242 lbs / 110 kg | |
| CP-BQ72 | NG/LP | 10 | 160,000 | 72"×30.3"×34.8"182.8×77×88.4cm | 242 lbs / 110 kg | 78.7"×26.6"×22.8"200×67.5×58cm | 282 lbs / 128 kg |

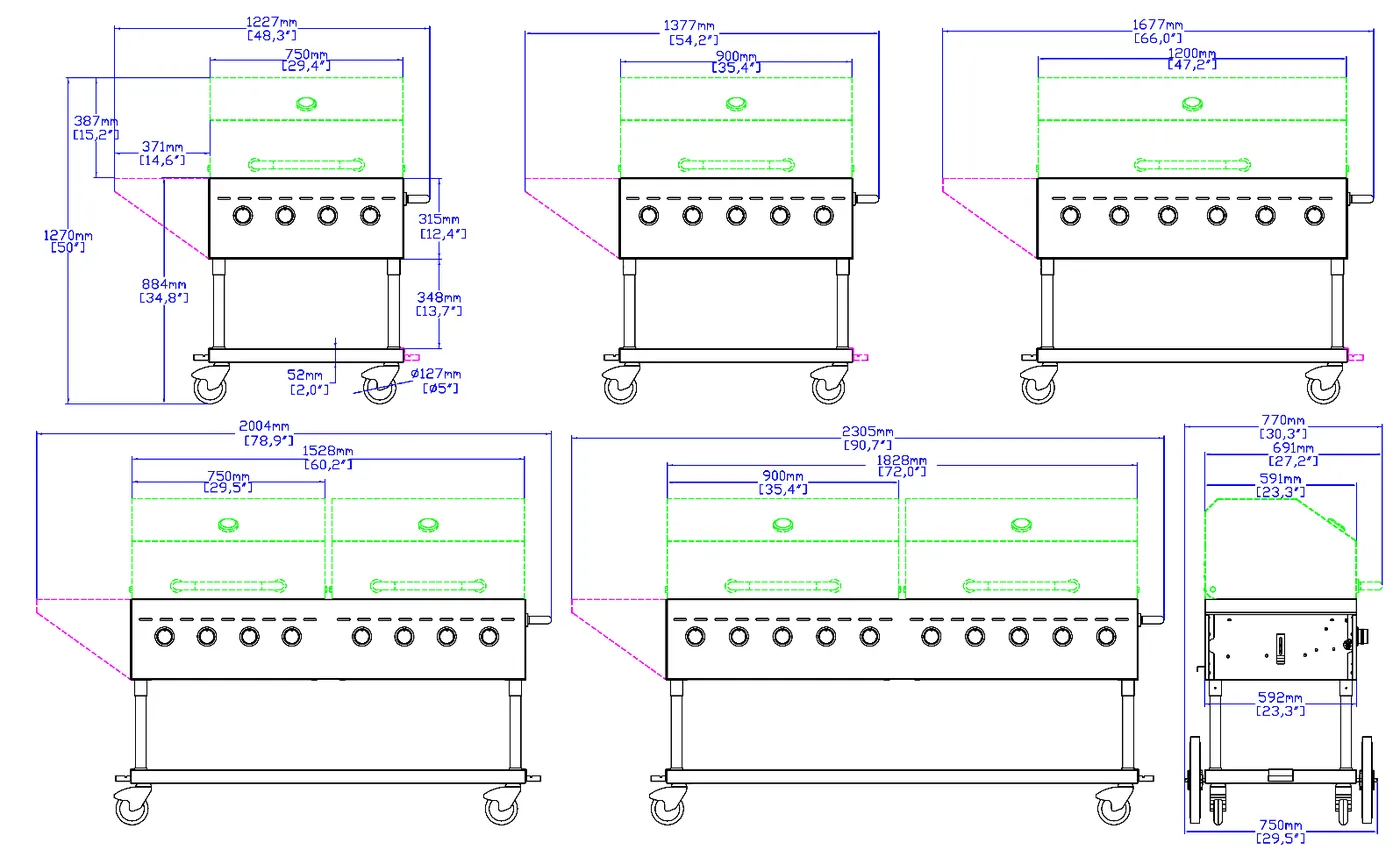

Dimension drawing
Open full size
Installation notes
- For commercial outdoor use only; not intended for household use.
- Two stage regulator(s) and hose(s) on LP models
- All units are available in Natural Gas models. 1/2" NPT for Natural Gas, rear gas connections. A gas pressure regulator supplied with NG unit must be installed
- Model of 30" 36" 48" connect one gas cylinder; Model 60" & 72" connect two cylinders
- Table data are for grill body only, do not include roll dome, side shelf or optional accessories
Options & accessories
- Whole Grill packaged separately by three packages: Grill body / Roll Dome / Side Shelf
- Grill body model: 30" / 36" / 48" / 60" / 72"
- Side Shelf (one model), Packing Size 24"x15.4"x15.8", G.W 17 lbs
- Roll Dome model: 30" / 36" / 48"; Grill 60" & 72" include two roll domes
- Roll Dome 30": Packing size 30.1"x24"x18.5", G.W 55 lbs
- Roll Dome 36": Packing size 36.2"x24"x18.5", G.W 64 lbs
- Roll Dome 48": Packing size 48.2"x24"x18.5", G.W 84 lbs
- Optional accessories: Roll dome 30"/36"/48"; Side shelf; Pizza oven 30"/36"/48"; Side shelf with cutout; Front shelf 30"/36"/48"; Charcoal tray; Wind guard 30"/36"/48"; Fish tray; Steam table pan adapter; Smoker box; Griddle plate 30"/36"/48"
- Optional: Choice different size griddle plates, replace grid and radiant, change to griddle
- Green lines and pink lines in the plan view just schematic the roll dome and side shelf
