Hot Plates & Cooktops
Electric Hot Plates · 220/380V
15" – 36" · 1.68 kW per plate
Our electric hot plates configured for 220V and 380V supplies.
4 models
CP-UEHP15SCP-UEHP15CP-UEHP24CP-UEHP36
- Spec sheet & drawings on request
- Private label available
- Built for EU, UK & international
Key features
- 9" (229 mm) sealed round plates, 1.68 kW each
- 15" single or dual, 24" and 36" widths
- Infinite heat controls
- Local plug on single-plate models; 3-phase units hard-wired
At a glance
- Product family
- Hot Plates & Cooktops
- Models in series
- 4
- Market
- Europe & International
- Electrical
- 220V/1P · 220V/1P 380V/3P
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Volts Phase | Watts | Amps | Plug or Supply connection | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| CP-UEHP15S | 220V/1P | 1680 | 7.6A | Local plug | 15"×17.9"×14.8"38.1×45.4×37.5cm | 31 lbs / 14 kg | 18.9"×22.8"×19.3"48×58×49cm | 42 lbs / 19 kg | |
| CP-UEHP15 | 220V/1P 380V/3P | 3360 | 15.3A 7.6A | Junction Box | 15"×29.6"×14.8"38.1×75.1×37.5cm | 47 lbs / 21.5 kg | 18.9"×34.7"×19.3"48×88×49cm | 70 lbs / 32 kg | |
| CP-UEHP24 | 220V/1P 380V/3P | 6720 | 30.5A 26.5A | Junction Box | 24"×29.6"×14.8"61×75.1×37.5cm | 86 lbs / 39 kg | 27.6"×34.7"×19.3"70×88×49cm | 128 lbs / 58 kg | |
| CP-UEHP36 | 220V/1P 380V/3P | 10080 | 45.8A 39.7A | Junction Box | 36"×29.6"×14.8"91.4×75.1×37.5cm | 132 lbs / 60 kg | 39.4"×34.7"×19.3"100×88×49cm | 185 lbs / 84 kg |

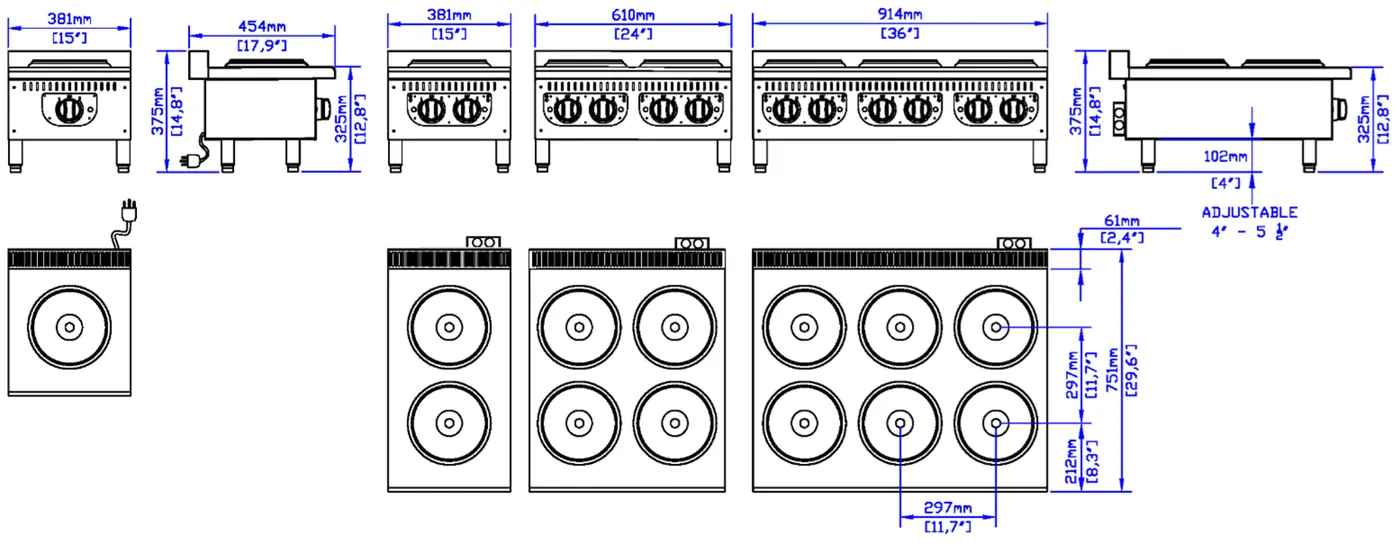

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- Use copper wire for supply connections, suitable for at least 90°C (194°F)
- Adequate ventilation is required
- 1" clearance at both sides and rear adjacent to combustible construction
- * Single round-plate model: 3 ft. cord with plug according to local regulations
- 3-phase units must be hard-wired at installation
Options & accessories
- 15" single or dual plates; 24" and 36" widths.
