North AmericaGas Hot Plates
12" – 36" · 25,000 BTU/h per burner
3 models
Details
Hot Plates & Cooktops
Combination Gas Cooktops
24" – 60" · hot plate, griddle & charbroiler in one
Build your own countertop line: hot plates, griddle and charbroiler sections combined in one chassis at a common working height. 29 standard configurations.
Certification
CSANSF
29 models
CPC-12H12GCPC-12H12CCPC-12C12GCPC-12H24GCPC-24C12GCPC-12C24GCPC-12H12G12HCPC-12H12C12HCPC-12H12C12GCPC-12H24G12CCPC-12H24C12HCPC-24C24G+17 more
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- Mix hot plate (H), griddle (G) and charbroiler (C) zones
- 24", 36", 48" and 60" widths; 29 standard layouts
- 25,000 BTU/h hot plate · 30,000 griddle · 35,000 charbroiler
- Standing pilots, adjustable from the front
- Cool-to-the-touch stainless steel front edge
- Shipped for natural gas; LP conversion kit included
At a glance
- Product family
- Hot Plates & Cooktops
- Models in series
- 29
- Market
- North America
- Certification
- CSA, NSF
- Gas
- NG / LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas type | Input rating BTU/h * Burners | Total BTU/h | Overall Dimension | Package Size | Add to inquiry |
|---|---|---|---|---|---|---|
| CPC-12H12G | NG / LP | 25000*2+30000*1 | 80,000 | 24"×28.8"×15.6"60.9×73.1×39.7cm | 27.5"×33.5"×19.25"70×85×49cm | |
| CPC-12H12C | NG / LP | 25000*2+35000*1 | 85,000 | 24"×28.8"×15.6"60.9×73.1×39.7cm | 27.5"×33.5"×19.25"70×85×49cm | |
| CPC-12C12G | NG / LP | 35000*1+30000*1 | 65,000 | 24"×28.8"×15.6"60.9×73.1×39.7cm | 27.5"×33.5"×19.25"70×85×49cm | |
| CPC-12H24G | NG / LP | 25000*2+30000*2 | 110,000 | 36"×28.8"×15.6"91.4×73.1×39.7cm | 39.5"×33.5"×19.25"100×85×49cm | |
| CPC-24C12G | NG / LP | 35000*2+30000*1 | 100,000 | 36"×28.8"×15.6"91.4×73.1×39.7cm | 39.5"×33.5"×19.25"100×85×49cm | |
| CPC-12C24G | NG / LP | 35000*1+30000*2 | 95,000 | 36"×28.8"×15.6"91.4×73.1×39.7cm | 39.5"×33.5"×19.25"100×85×49cm | |
| CPC-12H12G12H | NG / LP | 25000*2+30000*1+25000*2 | 130,000 | 36"×28.8"×15.6"91.4×73.1×39.7cm | 39.5"×33.5"×19.25"100×85×49cm | |
| CPC-12H12C12H | NG / LP | 25000*2+35000*1+25000*2 | 135,000 | 36"×28.8"×15.6"91.4×73.1×39.7cm | 39.5"×33.5"×19.25"100×85×49cm | |
| CPC-12H12C12G | NG / LP | 25000*2+35000*1+30000*1 | 115,000 | 36"×28.8"×15.6"91.4×73.1×39.7cm | 39.5"×33.5"×19.25"100×85×49cm | |
| CPC-12H24G12C | NG / LP | 25000*2+30000*2+35000*1 | 145,000 | 48"×28.8"×15.6"122×73.1×39.7cm | 51.25"×33.5"×19.25"130×85×49cm | |
| CPC-12H24C12H | NG / LP | 25000*2+35000*2+25000*2 | 170,000 | 48"×28.8"×15.6"122×73.1×39.7cm | 51.25"×33.5"×19.25"130×85×49cm | |
| CPC-24C24G | NG / LP | 35000*2+30000*2 | 130,000 | 48"×28.8"×15.6"122×73.1×39.7cm | 51.25"×33.5"×19.25"130×85×49cm | |
| CPC-12C36G | NG / LP | 35000*1+30000*3 | 125,000 | 48"×28.8"×15.6"122×73.1×39.7cm | 51.25"×33.5"×19.25"130×85×49cm | |
| CPC-12H24G12H | NG / LP | 25000*2+30000*2+25000*2 | 160,000 | 48"×28.8"×15.6"122×73.1×39.7cm | 51.25"×33.5"×19.25"130×85×49cm | |
| CPC-12H12C12G12H | NG / LP | 25000*2+35000*1+30000*1+25000*2 | 165,000 | 48"×28.8"×15.6"122×73.1×39.7cm | 51.25"×33.5"×19.25"130×85×49cm | |
| CPC-12H12G24H | NG / LP | 25000*2+30000*1+25000*4 | 180,000 | 48"×28.8"×15.6"122×73.1×39.7cm | 51.25"×33.5"×19.25"130×85×49cm | |
| CPC-12H12C24H | NG / LP | 25000*2+35000*1+25000*4 | 185,000 | 48"×28.8"×15.6"122×73.1×39.7cm | 51.25"×33.5"×19.25"130×85×49cm | |
| CPC-36C12G | NG / LP | 35000*3+30000*1 | 135,000 | 48"×28.8"×15.6"122×73.1×39.7cm | 51.25"×33.5"×19.25"130×85×49cm | |
| CPC-24H24G | NG / LP | 25000*4+30000*2 | 160,000 | 48"×28.8"×15.6"122×73.1×39.7cm | 51.25"×33.5"×19.25"130×85×49cm | |
| CPC-24H24C | NG / LP | 25000*4+35000*2 | 170,000 | 48"×28.8"×15.6"122×73.1×39.7cm | 51.25"×33.5"×19.25"130×85×49cm | |
| CPC-12H36G12C | NG / LP | 25000*2+30000*3+35000*1 | 175,000 | 60"×28.8"×15.6"153×73.1×39.7cm | 63"×33.5"×17.25"160×85×49cm | |
| CPC-12H36C12H | NG / LP | 25000*2+35000*3+25000*2 | 205,000 | 60"×28.8"×15.6"153×73.1×39.7cm | 63"×33.5"×17.25"160×85×49cm | |
| CPC-24C36G | NG / LP | 35000*2+30000*3 | 160,000 | 60"×28.8"×15.6"153×73.1×39.7cm | 63"×33.5"×17.25"160×85×49cm | |
| CPC-24H24G12H | NG / LP | 25000*4+30000*2+25000*2 | 210,000 | 60"×28.8"×15.6"153×73.1×39.7cm | 63"×33.5"×17.25"160×85×49cm | |
| CPC-24H24C12H | NG / LP | 25000*4+35000*2+25000*2 | 220,000 | 60"×28.8"×15.6"153×73.1×39.7cm | 63"×33.5"×17.25"160×85×49cm | |
| CPC-36H24G | NG / LP | 25000*6+30000*2 | 210,000 | 60"×28.8"×15.6"153×73.1×39.7cm | 63"×33.5"×17.25"160×85×49cm | |
| CPC-36H24C | NG / LP | 25000*6+35000*2 | 220,000 | 60"×28.8"×15.6"153×73.1×39.7cm | 63"×33.5"×17.25"160×85×49cm | |
| CPC-24H36G | NG / LP | 25000*4+30000*3 | 190,000 | 60"×28.8"×15.6"153×73.1×39.7cm | 63"×33.5"×17.25"160×85×49cm | |
| CPC-24H36C | NG / LP | 25000*4+35000*3 | 205,000 | 60"×28.8"×15.6"153×73.1×39.7cm | 63"×33.5"×17.25"160×85×49cm |

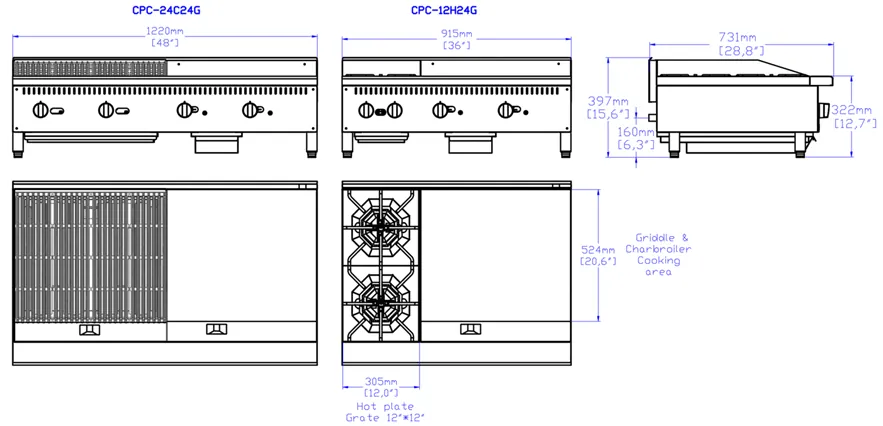

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
- Natural gas: operating pressure 4.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- A gas pressure regulator supplied with unit must be installed
- An adequate ventilation system is required for Commercial Cooking Equipment
- 6" clearance required at both sides and rear from combustible construction.
- Drawing functional zones: H: Hot plate; C: Charbroiler; G: Manual Griddle
Quote this series with your market configuration
Tell us the models, quantities, gas type or voltage, and destination. We reply with pricing, spec sheets and certification details.
