Fryers & Pasta Cookers
Gas Pasta Cookers
10 gallon · 100,000 BTU/h
High-efficiency open-pot pasta cookers for fresh or dry pasta, with round baskets as standard and square baskets optional.
Certification
ETLNSF
2 models
CP-PC10CP-PC11
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- Open-pot water tank heated through the side walls
- 100,000 BTU/h input, 10 gallon water capacity
- Snap-action millivolt control, no electrical connection required
- Temperature range 86–257°F (30–125°C); 260°F (127°C) high-limit
- Large cold zone keeps starch and particles away from the heat
- 1/2" water inlet and 1" drain connections
At a glance
- Product family
- Fryers & Pasta Cookers
- Models in series
- 2
- Market
- North America
- Certification
- ETL, NSF
- Gas
- NG · LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Gas Pressure | Total BTU | Water Capacity | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|---|
| CP-PC10 | NG | 4" W.C. | 100,000 | 10 gallons | 15.5"×30.2"×45.3"39.4×76.7×115cm | 139 lbs / 63 kg | 16.6"×32.3"×33.5"42×82×85cm | 158 lbs / 72 kg | |
| CP-PC10 | LP | 10" W.C. | 100,000 | 10 gallons | 15.5"×30.2"×45.3"39.4×76.7×115cm | 139 lbs / 63 kg | 16.6"×32.3"×33.5"42×82×85cm | 158 lbs / 72 kg | |
| CP-PC11 | NG | 4" W.C. | 122,000 | 11 gallons | 15.5"×30.2"×45.3"39.4×76.7×115cm | 149 lbs / 67.5 kg | 16.6"×32.3"×33.5"42×82×85cm | 167 lbs / 76 kg | |
| CP-PC11 | LP | 10" W.C. | 122,000 | 11 gallons | 15.5"×30.2"×45.3"39.4×76.7×115cm | 149 lbs / 67.5 kg | 16.6"×32.3"×33.5"42×82×85cm | 167 lbs / 76 kg |

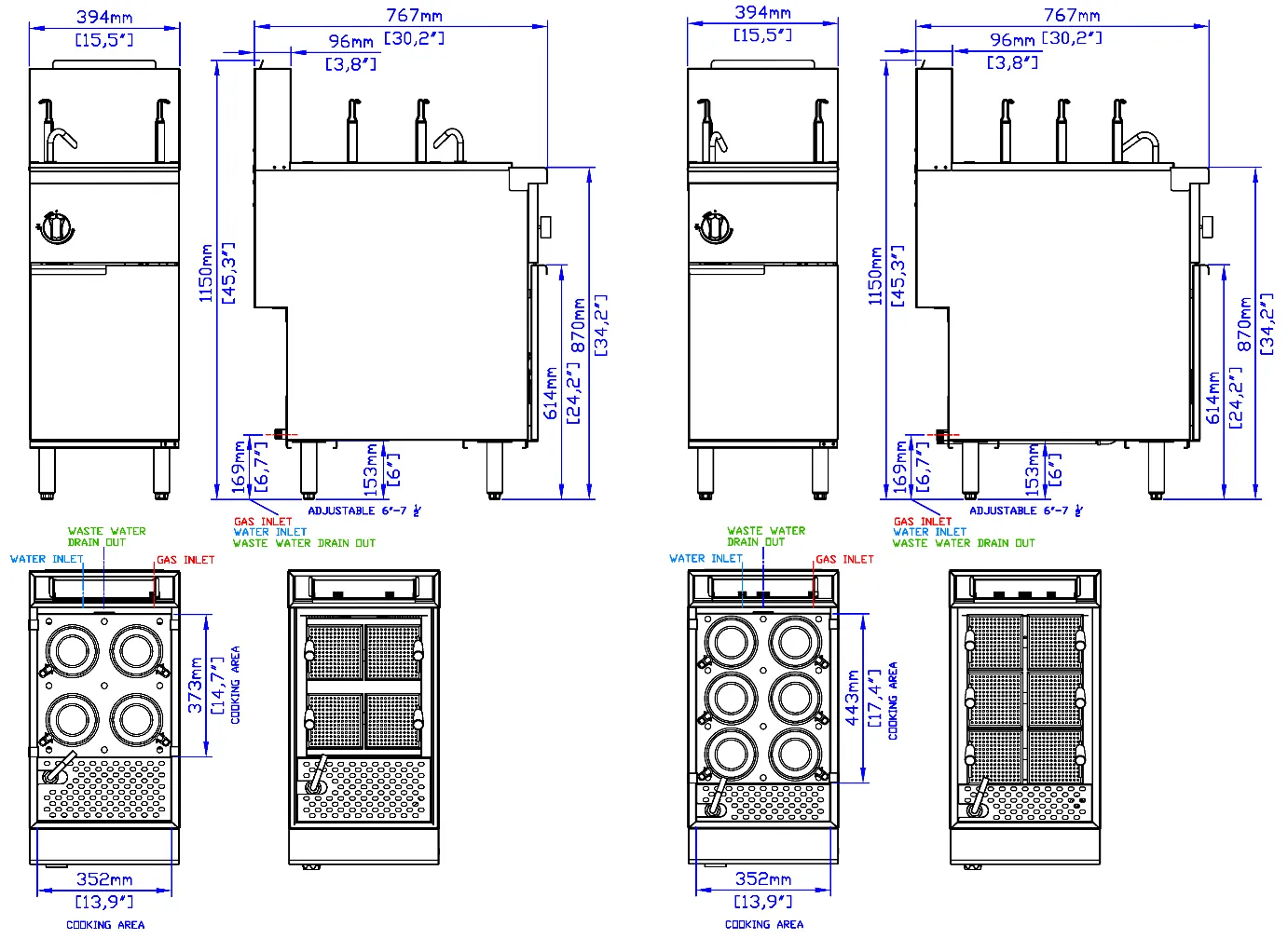

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use. Options & Accessories
- Gas connections 3/4" Male NPT. Supply gas pressure not to exceed 14" W.C.(1/2 PSI)
- An adequate ventilation system is required for Commercial Cooking Equipment
- Water connection 1/2"Male NPT
- Waste water drain connection 1"Male NPT
- 6" clearance required at both sides and rear from combustible construction.
- Conversion kits are not supplied; specify the gas type when ordering
Options & accessories
- Caster set (2 locking, 2 non-locking)
- Square Baskets
Quote this series with your market configuration
Tell us the models, quantities, gas type or voltage, and destination. We reply with pricing, spec sheets and certification details.
