SWENZA Electric Pasta Cooker

Electric Pasta Cooker: dimension drawing

Europe & Intl.

Fryers & Pasta Cookers

Electric Pasta Cooker

11 gallon · 10 kW

Electric pasta cooker for fresh or dry pasta with rapid tank heating.

1 model

CP-EPC

Request a quotation WhatsApp

Spec sheet & drawings on request
Private label available
Built for EU, UK & international

Key features

10 kW heating element; 11 gal (41 L) tank
Temperature range 86–230°F (30–110°C)
Over-temperature cut-off at 275°F (135°C)
220V 1-phase or 380V 3-phase
Adjustable legs; casters optional

At a glance

Product family: Fryers & Pasta Cookers
Models in series: 1
Market: Europe & International
Electrical: 380V 3P 4wire 220V 1P 3wire
Drawings: Dimension drawing below

Technical data

Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.

Request spec sheet

Model	Volts Phase	Watts (kW)	Amps	Capacity	Overall Dimensions	Net Weight	Package Size	Shipping Weight	Add to inquiry
CP-EPC	380V 3P 4wire 220V 1P 3wire	10	16A 46A	11 Gallons 41 L	15.5"×30.2"×44.5"39.4×76.8×113cm	97 lbs / 44 kg	32"×17.3"×33.4"81×44×85cm	117 lbs / 53 kg

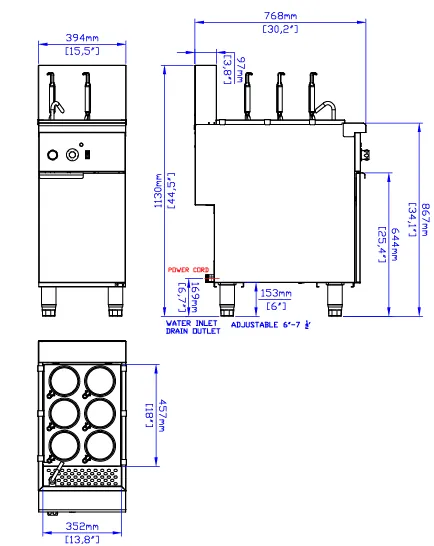

Dimension drawing

Electric Pasta Cooker: dimension drawing

Installation notes

For commercial installation only; not intended for household use.
Use only on non-combustible floors
6" clearance at both sides and rear adjacent to combustible construction
Adequate ventilation is required
Select voltage and phase before ordering
No cord or plug provided; connect power supply at the rear junction box

Options & accessories

Casters optional
Basket configurations
