SWENZA Electric Floor Fryer · 220/380V

Electric Floor Fryer · 220/380V: dimension drawing

Europe & Intl.

Fryers & Pasta Cookers

Electric Floor Fryer · 220/380V

50 lb · 12.8 kW

The 50 lb electric floor fryer configured for 220V single-phase or 380V three-phase supplies.

1 model

CP-UEF50

Request a quotation WhatsApp

Spec sheet & drawings on request
Private label available
Built for EU, UK & international

Key features

50 lb (27 L) oil capacity, 12.8 kW element
Frying area 14" × 16.7" (357 × 425 mm)
Snap-action thermostat 86–374°F (30–190°C)
1-1/4" full-port drain valve
220V 1-phase or 380V 3-phase

At a glance

Product family: Fryers & Pasta Cookers
Models in series: 1
Market: Europe & International
Electrical: 220V 1P 3WIRE 380V 3P 4WIRE
Drawings: Dimension drawing below

Technical data

Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.

Request spec sheet

Model	Volts Phase	Watts (kW)	Amps	Oil Capacity	Overall Dimensions	Net Weight	Package Size	Shipping Weight	Add to inquiry
CP-UEF50	220V 1P 3WIRE 380V 3P 4WIRE	12.8	58A 19.4A	50 lbs (27L)	15.5"×30.2"×44.5"39.4×76.8×113cm	110 lbs / 50 kg	16.5"×32.3"×33"42×82×84cm	130 lbs / 59 kg

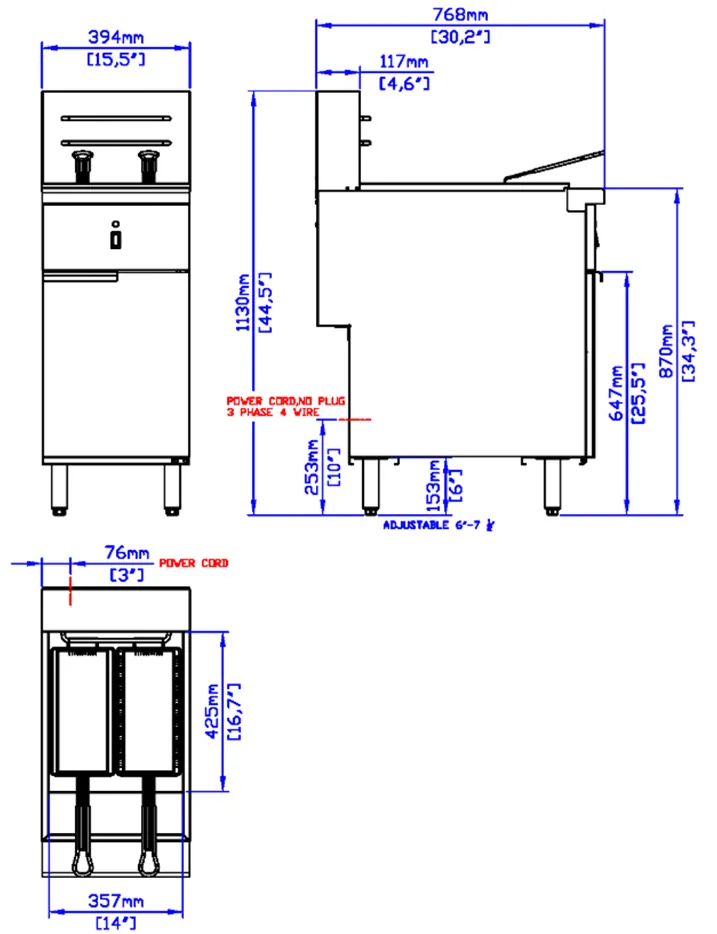

Dimension drawing

Electric Floor Fryer · 220/380V: dimension drawing

Installation notes

For commercial installation only; not intended for household use.
Use only on non-combustible floors
6" clearance at both sides and rear adjacent to combustible construction
Adequate ventilation is required
Select voltage and phase before ordering
No cord or plug provided; connect power supply at the rear junction box

Options & accessories

Caster set (2 locking, 2 non-locking)
Tank cleaning set (rod/brush/scoop)
Side splash
Tank cover for 50 lbs fryer
Connector strip for 50 lbs fryer
