High-Temp Undercounter Dishwasher
24 racks/h · 180–194°F rinse
A high-temperature sanitizing undercounter dishwasher for bars, cafés and small kitchens.
Certification
CSACSA Sanitation
1 model
CP-UH50
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 24 racks per hour; 0.66 gal water per rack
- High-temperature sanitizing rinse 180–194°F (82–90°C)
- 120 / 180 / 240 / 600 s cycles
- Integrated booster heater capable; automatic fill and pumped drain
- NEMA 6-20P plug; 208–240V
At a glance
- Product family
- Commercial Dishwashers
- Models in series
- 1
- Market
- North America
- Certification
- CSA, CSA Sanitation
- Drawings
- Dimension drawing below
Technical data
Model CP-UH50 Imperial and metric values as published in our catalog.
| Dimensions (W × D × H) | 23.6"×25"×31.5"600×635×800mm |
|---|---|
| Voltage and frequency | 208V-240V / 60Hz / 1Phase |
| Total connected load | 2.72 kW/208V-3.5 kW/240V |
| Water consumption per cycle | 0.66 gallon (2.5 L) |
| Water inlet temperature | 122°F (50°C)-140°F (60°C) |
| Water hardness (Ca2+ & Mg2+) | 1.5-4.3 gpg (25-75 mg/L) |
| Racks per hour | 24 |
| Rack size | 20"×20" |
| Tank capacity | 4.9 gallon (18.5 L) |
| Cycle time (seconds) | 120 / 180 / 240 / 600 |
| Wash temperature | 131F (55°C)-140°F (60°C) |
| Rinse temperature | 180F (82°C)-194°F (90°C) |
| Package size | 26.8"×30.7"×37"68×78×94cm |
| Net weight | 145 lbs (66 kg) |
| Gross weight | 196 lbs (89 kg) |

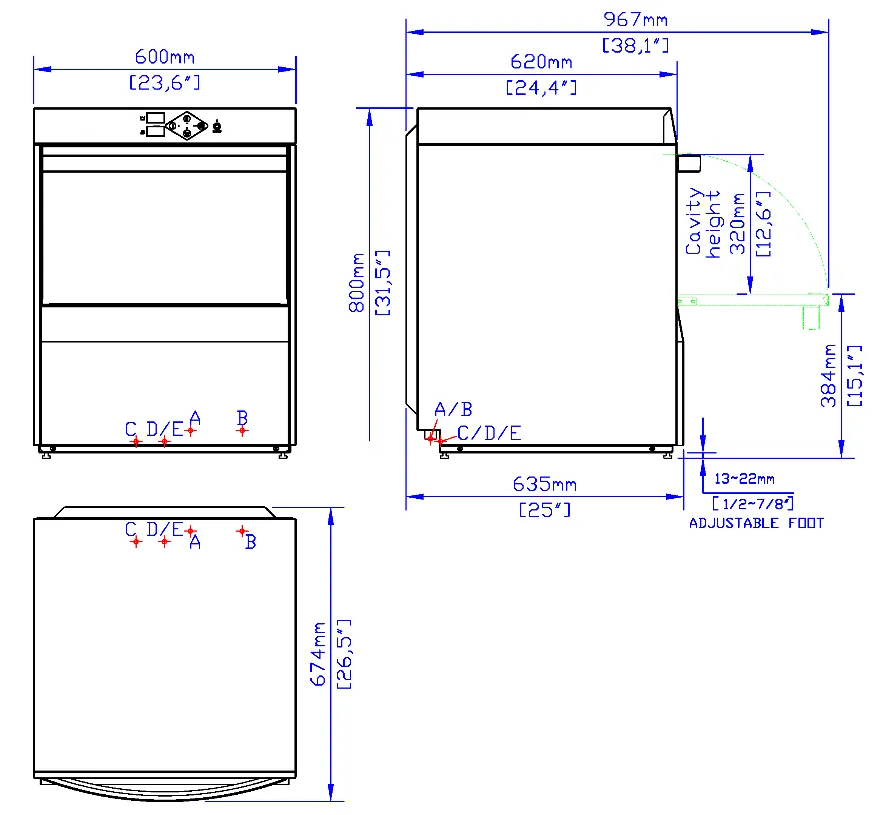

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- Power supply cord 6'; NEMA 6-20P plug
- 208V: wash pump 2.7A/0.56 kW; rinse pump 10.4A/2.16 kW; total 13A/2.72 kW
- 240V: wash pump 2.6A/0.62 kW; rinse pump 12A/2.88 kW; total 14.5A/3.5 kW
- 3/4" water inlet; flowing pressure 29-58 psi (2-4 bar)
- A Water inlet: 3/4" connection, 5' length
- B Power supply: NEMA 6-20P plug, 6' length
- C Drain outlet: 1 1/4", 6' length
- D Rinse aid inlet: 1/4" tube, 8' length
- E Detergent inlet: 1/4" tube, 8' length
