High-Temp Door-Type Dishwasher
40 racks/h · hood type
A high-temperature hood-type dishwasher for restaurants and institutional kitchens.
Certification
CSACSA Sanitation
1 model
CP-DH60
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 40 racks per hour; 0.66 gal water per rack
- High-temperature sanitizing rinse 180–194°F (82–90°C)
- 90 / 120 / 180 / 600 s cycles
- Integrated electric booster; automatic fill
- 208–240V, 3-phase, hard-wired
At a glance
- Product family
- Commercial Dishwashers
- Models in series
- 1
- Market
- North America
- Certification
- CSA, CSA Sanitation
- Drawings
- Dimension drawing below
Technical data
Model CP-DH60 Imperial and metric values as published in our catalog.
| Dimensions (W × D × H) | 28.1"×31.5"×56.1"/73.9"715×800×1425/1877mm |
|---|---|
| Voltage and frequency | 208V-240V / 60Hz / 3Phase |
| Total connected load | 9.86 kW |
| Washing pump power | 0.71 kW |
| Rinsing pump power | 0.15 kW |
| Tank heating power | 3 kW |
| Electric booster power | 9 kW |
| Water consumption per cycle | 0.66 gallon (2.5 L) |
| Water inlet temperature | 122°F (50°C)-140°F (60°C) |
| Water hardness (Ca2+ & Mg2+) | 1.5-4.3 gpg (25-75 mg/L) |
| Racks per hour | 40 |
| Rack size | 20"×20" |
| Tank capacity | 6.9 gallon (26 L) |
| Cycle time (seconds) | 90 / 120 / 180 / 600 |
| Wash temperature | 140F (60°C)-149°F (65°C) |
| Rinse temperature | 180F (82°C)-194°F (90°C) |
| Package size | 34.5"×30.8"×61.7"88×78×157cm |
| Net weight | 181 lbs (82.2 kg) |
| Gross weight | 319 lbs (145 kg) |

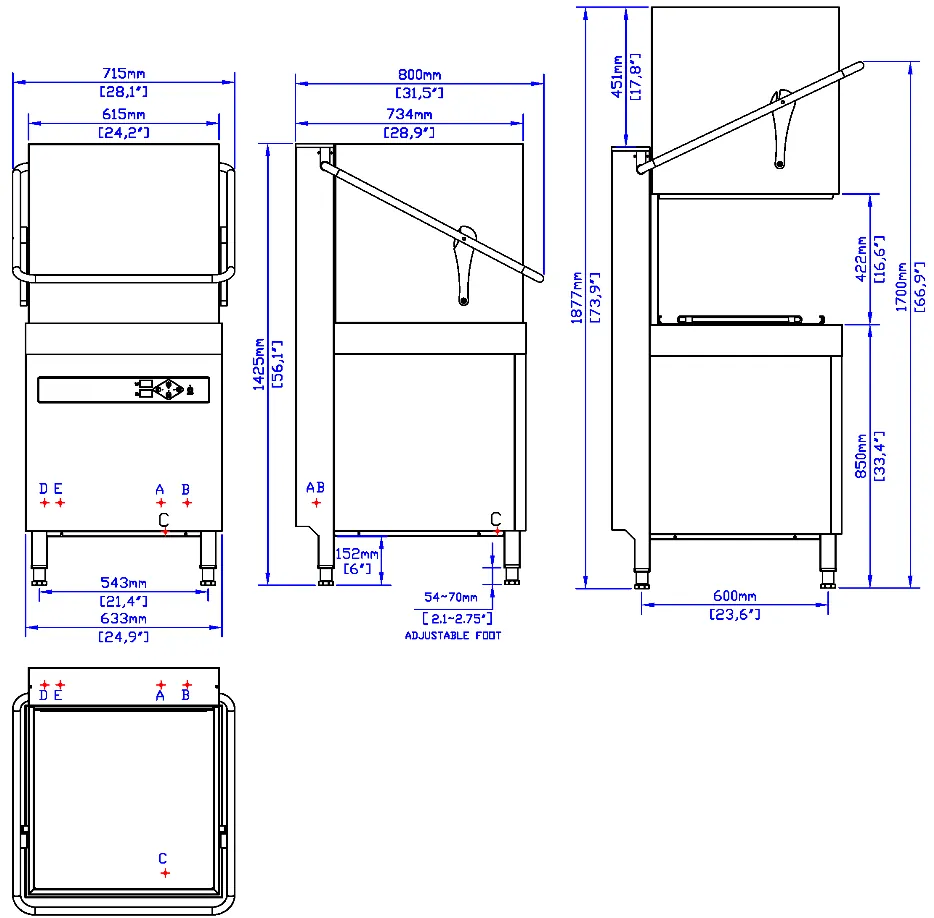

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 208V-240V, 60Hz; hard-wired, 3 phase
- 208V: total 25.3A/7.74 kW
- 240V: total 28.4A/9.86 kW; MCA 35A; MOP 40A
- 3/4" water inlet; flowing pressure 29-58 psi (2-4 bar)
- A Water inlet: 3/4" connection, 5' length
- B Power supply: hard-wired, 208V-240V 60Hz, 3 phases
- C Drain outlet: 1 1/4", 6 1/2' hose length
- D Rinse aid inlet: 1/4" tube, 8' length
- E Detergent inlet: 1/4" tube, 8' length
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.
