Commercial Door-Type Dishwasher
Up to 60 racks/h · 220V
A hood-type dishwasher with fast cycles and a full range of dosing, booster and heat-recovery options.
Certification
CE
1 model
CP-60E
- Spec sheet & drawings on request
- Private label available
- Built for EU, UK & international
Key features
- 60 / 40 / 30 racks per hour
- 2.5 L water per rack; 18.5 L tank
- 60 / 90 / 120 s cycles
- Options: pumped drain, dosing pumps, heat recovery, entry/exit tables
- 220V 1-phase
At a glance
- Product family
- Commercial Dishwashers
- Models in series
- 1
- Market
- Europe & International
- Certification
- CE
- Drawings
- Dimension drawing below
Technical data
Model CP-60E Imperial and metric values as published in our catalog.
| Dimensions (W × D × H) | 725×843×1522/2022mm |
|---|---|
| Voltage and frequency | 220V / 50Hz / 1Phase |
| Total connected load | 11.71 kW |
| Washing pump power | 0.71 kW |
| Tank heating power | 3 kW |
| Electric booster power | 8 kW |
| Water consumption per cycle | 2.5 L |
| Water inlet temperature | 10°C-60°C |
| Water hardness | <150 mg/L |
| Racks per hour | 60 / 40 / 30 |
| Rack size | 500×500mm |
| Tank capacity | 27 L |
| Cycle time (seconds) | 60 / 90 / 120 |
| Wash temperature | 60°C-65°C |
| Rinse temperature | 82°C-90°C |
| Package size | 88×78×157cm |
| Net weight | 82.2 kg |
| Gross weight | 145 kg |

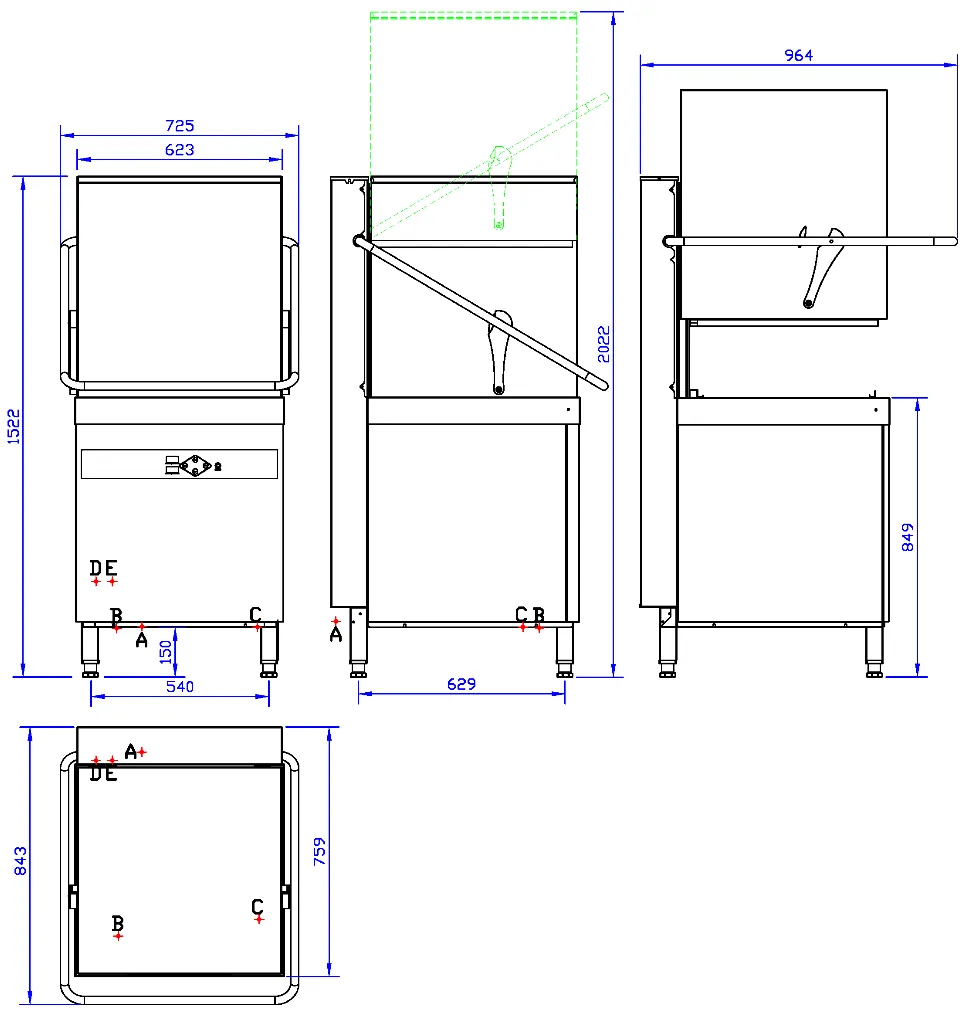

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- Single phase only, 220V, 50Hz; no plug
- Wash pump 0.71 kW; wash heat 3 kW; rinse heat 8 kW
- G3/4" water inlet; flowing pressure 0.15-0.5 MPa
- A Water inlet: G3/4" pipe connection, 1.5 m length
- B Power supply: 1.8 m cable length
- C Drain outlet: G 1 1/4", 1.8 m length
- D Rinse aid inlet: G 1/4" tube, 2.4 m length
- E Detergent inlet: G 1/4" tube, 2.4 m length
Options & accessories
- Automatic pumped drain
- Twin-pump chemical dosing system
- Rinse pump system
- Booster pump system
- Flatware rack
- Glass rack (25 or 36 grid)
- Bowl rack
- Extenders
- Entry and exit table (customize drawing)
- Steam heat recovery system
- Drain heat recovery system
