Wok Ranges · Duck-Mouth Burner

Name: SWENZA Wok Ranges · Duck-Mouth Burner
Brand: SWENZA

13" & 16" · 95,000–125,000 BTU/h

Single-hole Mandarin wok ranges with anti-clogging duck-mouth jet burners for intense, cone-shaped heat.

Certification

ETLNSF

2 models

CP-WOKCP-WOK16

Request a quotation WhatsApp

Key features

Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.

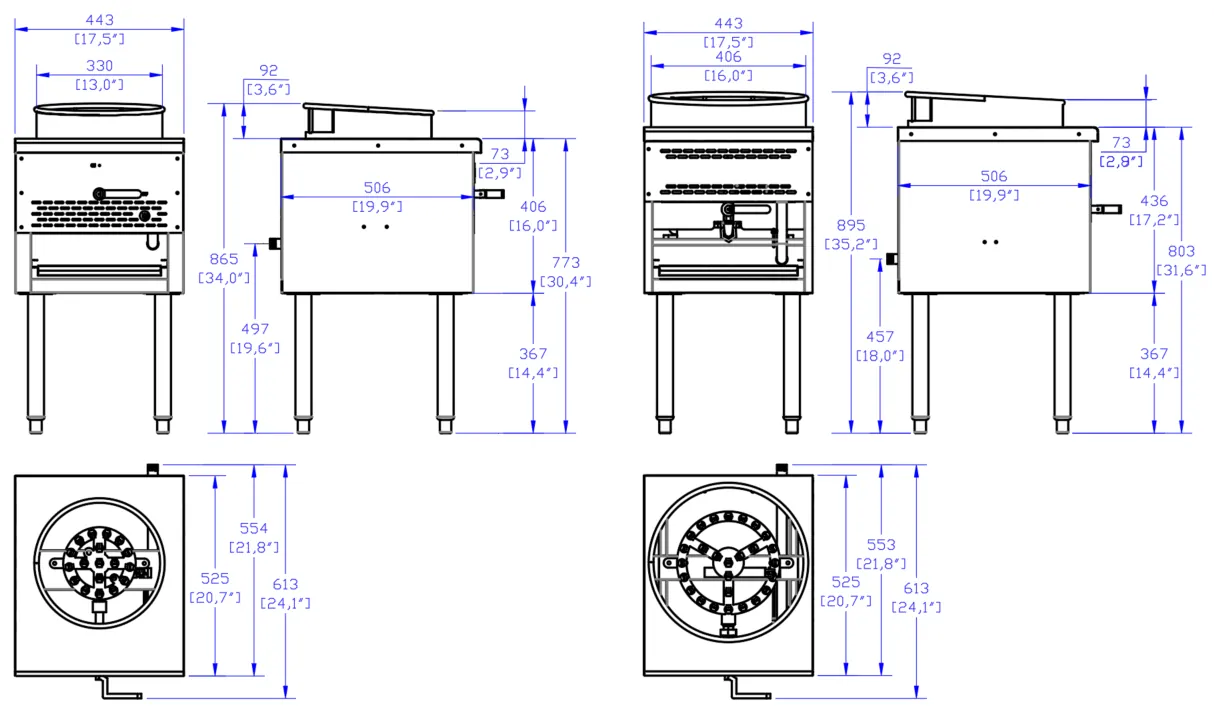

Model	Gas Type	Jet Burners	Total BTU	Overall Dimensions	Net Weight	Package Size	Shipping Weight	Add to inquiry
CP-WOK	NG / LP	18	95,000	17.5"×24.1"×34"44.3×61.3×86.5cm	62 lbs / 28 kg	18.1"×22.8"×24.4"46×58×62cm	77 lbs / 35 kg
CP-WOK16	NG / LP	28	125,000	17.5"×24.1"×35.2"44.3×61.3×89.5cm	68 lbs / 31 kg	18.1"×22.8"×25.6"46×58×65cm	84 lbs / 38 kg

For commercial installation only; not intended for household use.
3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
Natural gas: operating pressure 5.0" W.C., recommended supply 7–9" W.C.
Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
A gas pressure regulator supplied with unit must be installed
An adequate ventilation system is required for Commercial Cooking Equipment
6" clearance required at both sides and rear from combustible construction.
