Wok Ranges
Chinese Wok Ranges
1 – 6 holes · duck-mouth burners · water-cooled top
Full Chinese wok lines with water-cooled tops, swing faucets and knee valves. 27 standard configurations from 1 to 6 burners.
Certification
ETLETL Sanitation
27 models
CP-W1L0CP-W1L1CP-W2L0CP-W2L1CP-W2L2CP-W3L0CP-W3L1CP-W3L2CP-W3L3CP-W4L0CP-W4L1CP-W4L2+15 more
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- Water-cooled top with built-in drain system
- Swing faucet between wok holes
- Knee-level "L" gas valve for hands-free cooking
- 95,000 BTU/h (13") or 125,000 BTU/h (16") duck-mouth burners
- Stainless steel front, sides, top, landing ledge, backsplash and pipe rack
- 1–6 burners in 27 standard combinations
At a glance
- Product family
- Wok Ranges
- Models in series
- 27
- Market
- North America
- Certification
- ETL, ETL Sanitation
- Gas
- NG / LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Jet Burners | Pot Diameter (in) | Total BTU | Overall Dimensions (in / cm) | Package Size (in / cm) | Add to inquiry |
|---|---|---|---|---|---|---|---|
| CP-W1L0 | NG / LP | 1 | 13" | 95,000 | 27.8"×44"×62"70.7×111.8×157.5cm | 31.5"×47.3"×39.4"80×120×100cm | |
| CP-W1L1 | NG / LP | 1 | 16" | 125,000 | 27.8"×44"×62"70.7×111.8×157.5cm | 31.5"×47.3"×39.4"80×120×100cm | |
| CP-W2L0 | NG / LP | 2 | 13"+13" | 190,000 | 47.5"×44"×62"120.6×111.8×157.5cm | 51.2"×47.3"×39.4"130×120×100cm | |
| CP-W2L1 | NG / LP | 2 | 13"+16" | 220,000 | 47.5"×44"×62"120.6×111.8×157.5cm | 51.2"×47.3"×39.4"130×120×100cm | |
| CP-W2L2 | NG / LP | 2 | 16"+16" | 250,000 | 47.5"×44"×62"120.6×111.8×157.5cm | 51.2"×47.3"×39.4"130×120×100cm | |
| CP-W3L0 | NG / LP | 3 | 13"+13"+13" | 285,000 | 67.2"×44"×62"170.6×111.8×157.5cm | 70.9"×47.3"×39.4"180×120×100cm | |
| CP-W3L1 | NG / LP | 3 | 13"+16"+13" | 315,000 | 67.2"×44"×62"170.6×111.8×157.5cm | 70.9"×47.3"×39.4"180×120×100cm | |
| CP-W3L2 | NG / LP | 3 | 16"+13"+16" | 345,000 | 67.2"×44"×62"170.6×111.8×157.5cm | 70.9"×47.3"×39.4"180×120×100cm | |
| CP-W3L3 | NG / LP | 3 | 16"+16"+16" | 375,000 | 67.2"×44"×62"170.6×111.8×157.5cm | 70.9"×47.3"×39.4"180×120×100cm | |
| CP-W4L0 | NG / LP | 4 | 13"+13"+13"+13" | 380,000 | 86.9"×44"×62"220.7×111.8×157.5cm | 90.5"×47.3"×39.4"230×120×100cm | |
| CP-W4L1 | NG / LP | 4 | 13"+16"+13"+13" | 410,000 | 86.9"×44"×62"220.7×111.8×157.5cm | 90.5"×47.3"×39.4"230×120×100cm | |
| CP-W4L2 | NG / LP | 4 | 13"+16"+16"+13" | 440,000 | 86.9"×44"×62"220.7×111.8×157.5cm | 90.5"×47.3"×39.4"230×120×100cm | |
| CP-W4L3 | NG / LP | 4 | 16"+16"+16"+13" | 470,000 | 86.9"×44"×62"220.7×111.8×157.5cm | 90.5"×47.3"×39.4"230×120×100cm | |
| CP-W4L4 | NG / LP | 4 | 16"+16"+16"+16" | 500,000 | 86.9"×44"×62"220.7×111.8×157.5cm | 90.5"×47.3"×39.4"230×120×100cm | |
| CP-W5L0 | NG / LP | 5 | 13"+13"+13"+13"+13" | 475,000 | 106.6"×44"×62"270.7×111.8×157.5cm | 111"×47.3"×39.4"282×120×100cm | |
| CP-W5L1 | NG / LP | 5 | 13"+13"+16"+13"+13" | 505,000 | 106.6"×44"×62"270.7×111.8×157.5cm | 111"×47.3"×39.4"282×120×100cm | |
| CP-W5L2 | NG / LP | 5 | 13"+16"+13"+16"+13" | 535,000 | 106.6"×44"×62"270.7×111.8×157.5cm | 111"×47.3"×39.4"282×120×100cm | |
| CP-W5L3 | NG / LP | 5 | 16"+13"+16"+13"+16" | 565,000 | 106.6"×44"×62"270.7×111.8×157.5cm | 111"×47.3"×39.4"282×120×100cm | |
| CP-W5L4 | NG / LP | 5 | 16"+16"+16"+16"+13" | 595,000 | 106.6"×44"×62"270.7×111.8×157.5cm | 111"×47.3"×39.4"282×120×100cm | |
| CP-W5L5 | NG / LP | 5 | 16"+16"+16"+16"+16" | 625,000 | 106.6"×44"×62"270.7×111.8×157.5cm | 111"×47.3"×39.4"282×120×100cm | |
| CP-W6L0 | NG / LP | 6 | 13"+13"+13"+13"+13"+13" | 570,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm | |
| CP-W6L1 | NG / LP | 6 | 13"+13"+16"+13"+13"+13" | 600,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm | |
| CP-W6L2 | NG / LP | 6 | 13"+13"+16"+16"+13"+13" | 630,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm | |
| CP-W6L3 | NG / LP | 6 | 16"+13"+16"+13"+13"+16" | 660,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm | |
| CP-W6L4 | NG / LP | 6 | 13"+16"+16"+16"+16"+13" | 690,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm | |
| CP-W6L5 | NG / LP | 6 | 16"+16"+16"+16"+16"+13" | 720,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm | |
| CP-W6L6 | NG / LP | 6 | 16"+16"+16"+16"+16"+16" | 750,000 | 126.2"×44"×62"320.7×111.8×157.5cm | 131"×47.3"×39.4"333×120×100cm |

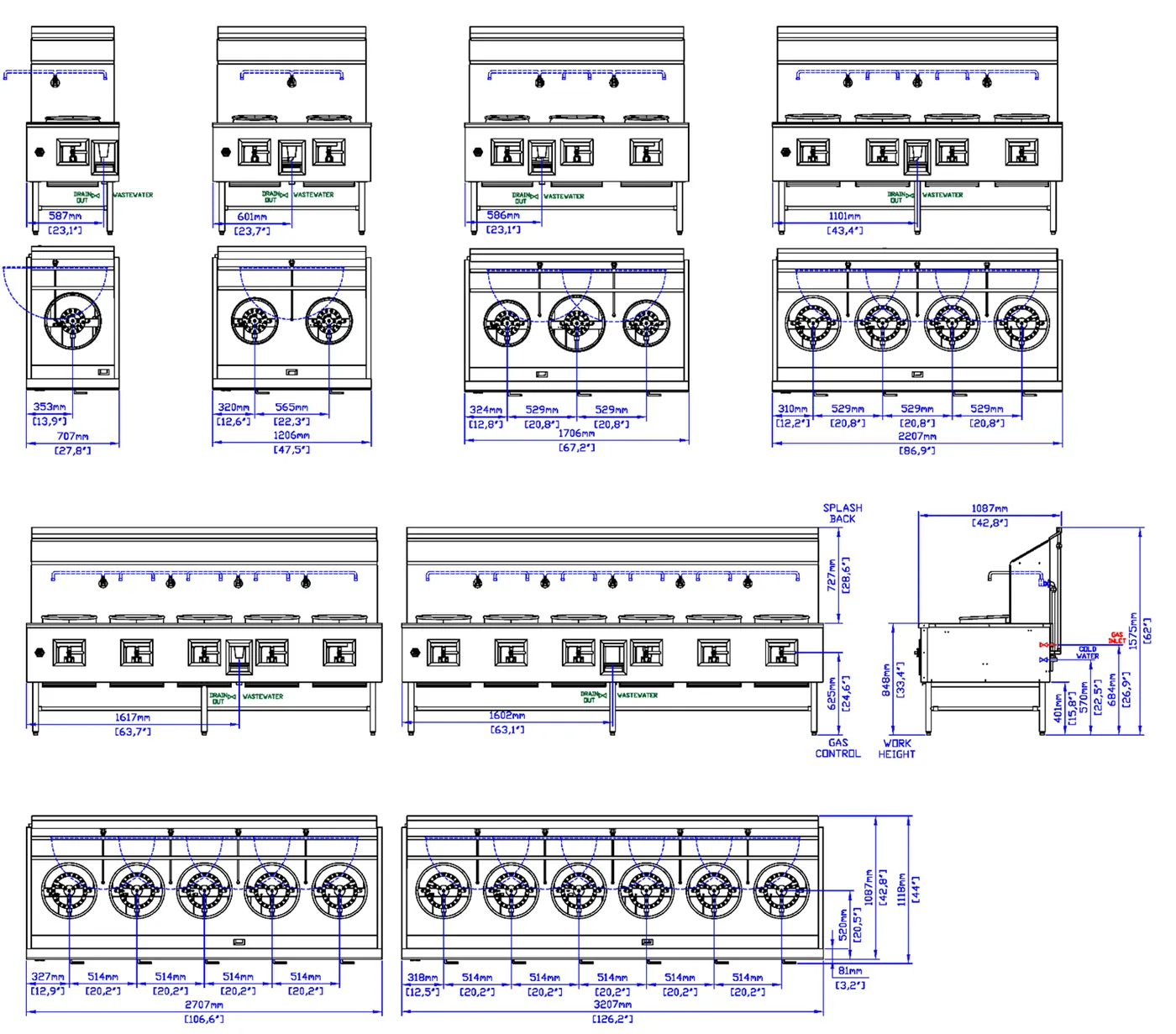

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections; supply gas pressure must not exceed 14" W.C. (1/2 PSI)
- Natural gas: operating pressure 5.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- Two gas inlet connections on W4, W5 and W6 series models
- Install the gas pressure regulator supplied with the unit
- Water inlet and drain outlet: 1/2" NPT female
- An adequate ventilation system is required
- 6" clearance at both sides and rear adjacent to combustible construction
Options & accessories
- Natural gas or liquid propane
- 13" or 16" wok tops; 1-6 burners with the combinations shown in the model table
