Gas Stock Pot Ranges
Single & double · 80,000 BTU/h per section
A low working height for large stock pots and kettles, with three-ring burners and two heat controls per section.
Certification
CSANSF
2 models
CP-SP-1CP-SP-2
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- Three concentric ring burners, 80,000 BTU/h per section
- Two infinite heat controls per section
- Heavy-duty cast iron top grates
- Stainless steel front and sides; storage below
- LP conversion kit included
At a glance
- Product family
- Ranges & Stock Pot Ranges
- Models in series
- 2
- Market
- North America
- Certification
- CSA, NSF
- Gas
- NG / LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Total BTU | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|
| CP-SP-1 | NG / LP | 80,000 | 18"×24.8"×22.25"46.2×63×57cm | 88 lbs / 40 kg | 19.7"×25.2"×21.7"50×64×55cm | 99 lbs / 45 kg | |
| CP-SP-2 | NG / LP | 160,000 | 18"×45.2"×22.25"46.2×115×57cm | 165 lbs / 75 kg | 19.7"×45.3"×21.7"50×115×55cm | 183 lbs / 83 kg |

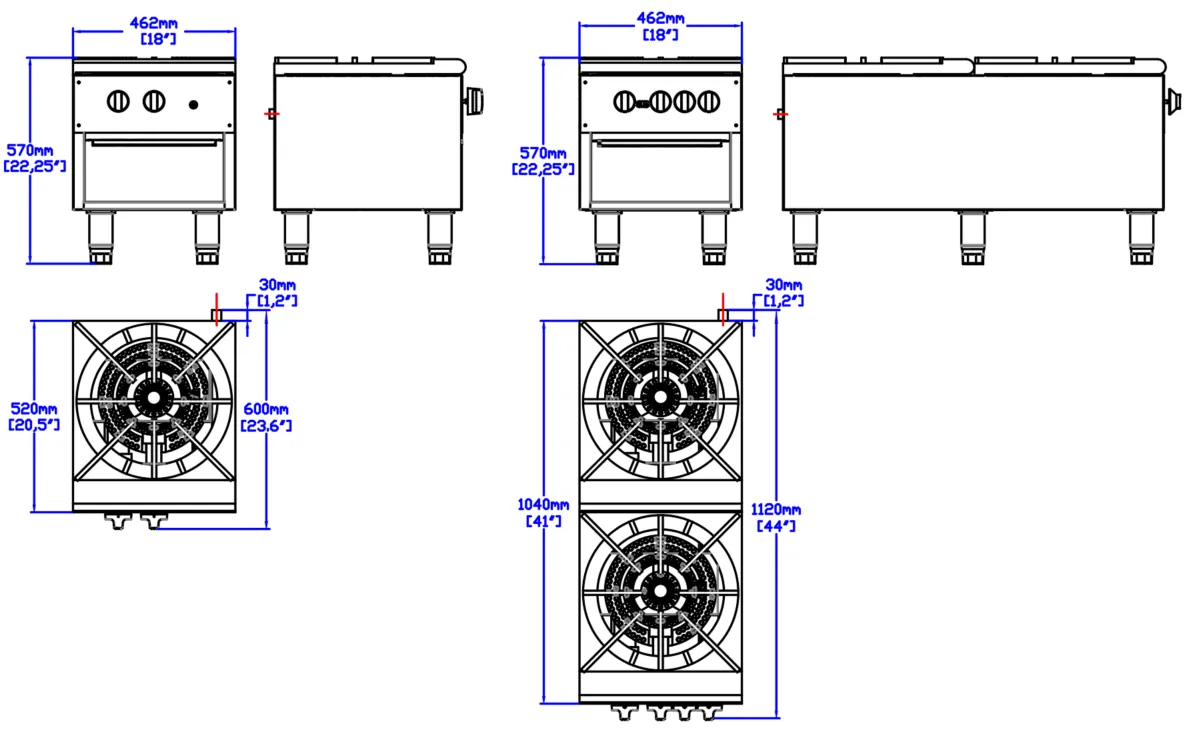

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
- Natural gas: operating pressure 5.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- A gas pressure regulator supplied with unit must be installed
- An adequate ventilation system is required for Commercial Cooking Equipment
- 6" clearance required at both sides and rear from combustible construction.
Options & accessories
- Four head style or The Flame Protection style (pictured option; no separate model specifications given)
