Ranges & Stock Pot Ranges
Gas Ranges · CE
24" – 60" · flame protection top & bottom
CE-approved restaurant ranges with flame-failure protection on both the top burners and the oven.
Certification
CE
5 models
CP-UR24CP-UR36CP-UR48CP-UR60CP-UR60-24MG
- Spec sheet & drawings on request
- Private label available
- Built for EU, UK & international
Key features
- Flame-failure protection on top burners and oven
- 8.5 kW per top burner, griddle section and oven
- Oven thermostat 100–300°C
- Stainless steel backriser with lift-off high shelf
- Low-backplate versions available (e.g. CP-ULR24)
At a glance
- Product family
- Ranges & Stock Pot Ranges
- Models in series
- 5
- Market
- Europe & International
- Certification
- CE
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Total | Overall Dimensions | Net Weight | Shipping Dimensions | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|
| CP-UR24 | 42.5 | 61×80×152cm | 122 kg | 70×92×111cm | 161 kg | |
| CP-UR36 | 59.5 | 91×80×152cm | 165 kg | 100×92×111cm | 212 kg | |
| CP-UR48 | 85 | 122×80×152cm | 165 kg | 130×92×111cm | 292 kg | |
| CP-UR60 | 102 | 153×80×152cm | 282 kg | 160×92×111cm | 340 kg | |
| CP-UR60-24MG | 85 | 153×80×152cm | 306 kg | 160×92×119cm | 371 kg |

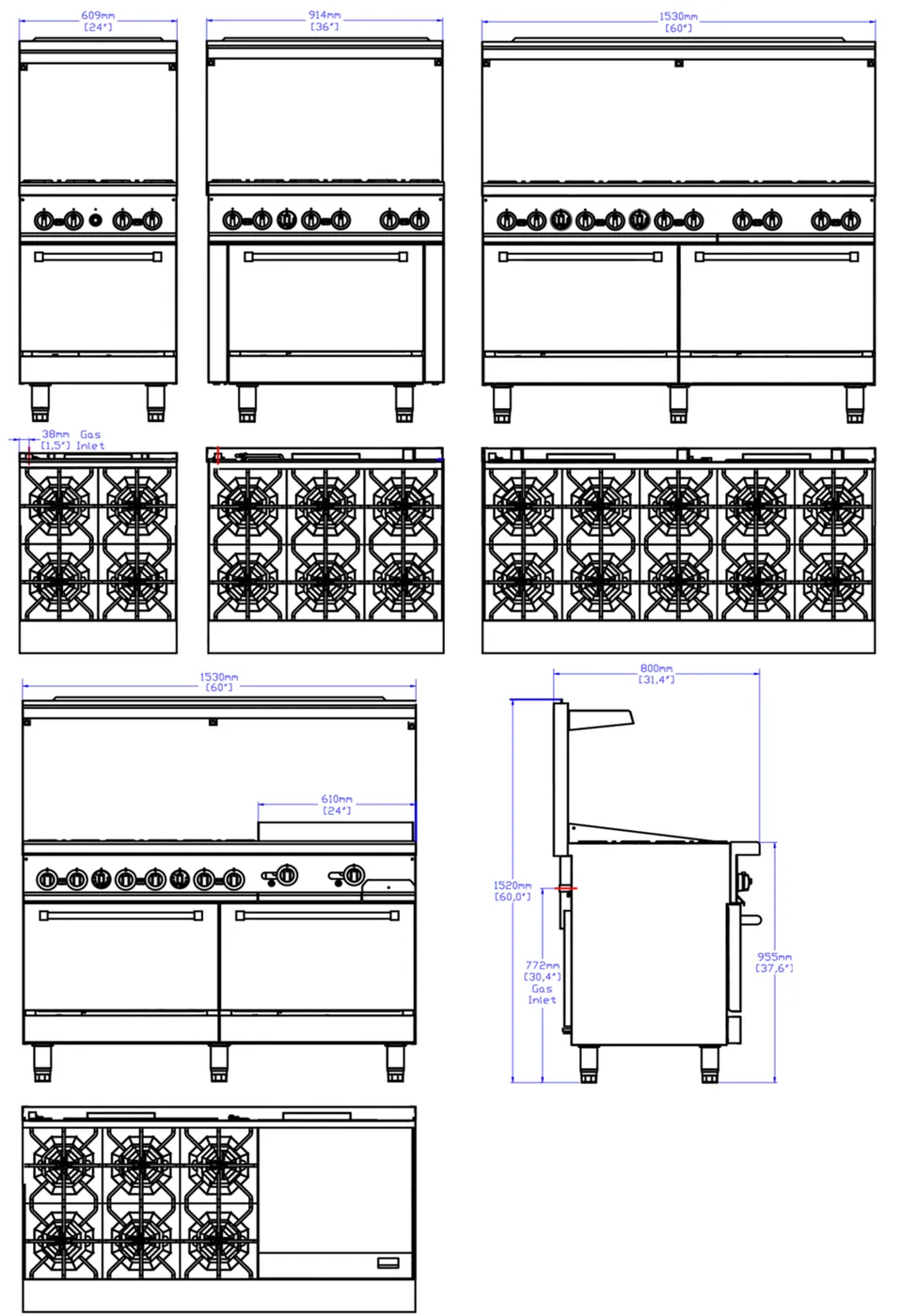

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- R3/4 rear gas connections. Inlet pressure as below:
- G20 at 20mbar - I2H.I2E and I2E+
- G30/G31 at 30mbar - I3B/P(30)
- G30 at 28-30mbar G31 at 37 mbar - I3+(28-30-37)
- An adequate ventilation system is required for Commercial Cooking Equipment
- 6" clearance required at both sides and rear from combustible construction.
Options & accessories
- Optional casters
- Low back plate model example: CP-ULR24. Code identifies width of unit / Range / Lower back plate / CE certified / Trademark
