72" Gas Combination Range
6 cooking functions in one suite
A complete cook line in a single 72" appliance: fryer, pasta cooker, griddle, charbroiler, hot plates and static oven.
1 model
CP-R72C
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- Fryer, pasta cooker, griddle, charbroiler, hot plates and oven
- Up to 258,000 BTU/h (NG) total input
- Oven thermostat 100–250°C; 26" × 22.5" × 13-3/4" cavity
- Stainless steel backriser with lift-off high shelf
- Casters optional
At a glance
- Product family
- Ranges & Stock Pot Ranges
- Models in series
- 1
- Market
- North America
- Gas
- NG 5" / LP 10"
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas & Pressure | Function | Width | Burners | Power | Total Power | Overall Dimensions | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| CP-R72C | NG 5" / LP 10" | Fryer | 12" | 1 | 20,000BTU (5.86kW) | NG: 258,000BTU (75.6KW) LP: 238,000BTU (69.7kW) | 183×80.5×106cm | |
| CP-R72C | NG 5" / LP 10" | Pasta cooker | 12" | 1 | 20,000BTU (5.86kW) | NG: 258,000BTU (75.6KW) LP: 238,000BTU (69.7kW) | 183×80.5×106cm | |
| CP-R72C | NG 5" / LP 10" | Griddle | 12" | 1 | NG-30,000BTU (8.8kW) LP-27,000BTU (7.9kW) | NG: 258,000BTU (75.6KW) LP: 238,000BTU (69.7kW) | 183×80.5×106cm | |
| CP-R72C | NG 5" / LP 10" | Charbroiler | 12" | 1 | 35,000BTU (10.2kW) | NG: 258,000BTU (75.6KW) LP: 238,000BTU (69.7kW) | 183×80.5×106cm | |
| CP-R72C | NG 5" / LP 10" | Hot plate | 34" | 4 | NG-120,000BTU (35.2kW) LP-108,000BTU (31.6kW) | NG: 258,000BTU (75.6KW) LP: 238,000BTU (69.7kW) | 183×80.5×106cm | |
| CP-R72C | NG 5" / LP 10" | Static oven | 30" | 1 | NG-33,000BTU (9.7kW) LP-28,000BTU (8.2kW) | NG: 258,000BTU (75.6KW) LP: 238,000BTU (69.7kW) | 183×80.5×106cm |

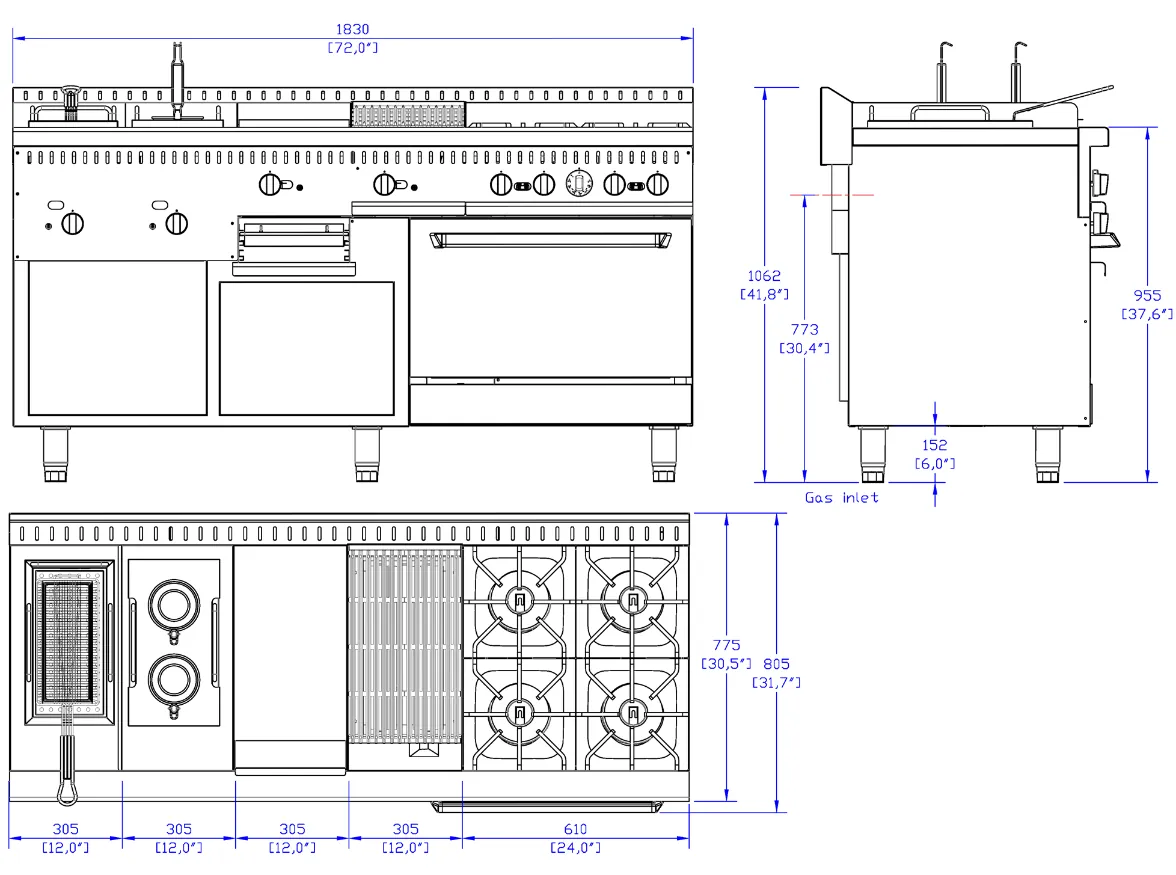

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
- Natural gas: operating pressure 5.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- A gas pressure regulator supplied with unit must be installed
- An adequate ventilation system is required for Commercial Cooking Equipment
Options & accessories
- Optional casters
