Ranges & Stock Pot Ranges
Gas Stock Pot Ranges · CE
Single & double · 8 kW per section
CE-approved stock pot ranges with flame-failure protection.
Certification
CE
2 models
CP-USP-1CP-USP-2
- Spec sheet & drawings on request
- Private label available
- Built for EU, UK & international
Key features
- Three concentric ring burners, 8 kW per section
- Flame-failure protection
- Heavy-duty cast iron top grates
- Stainless steel front and sides; storage below
At a glance
- Product family
- Ranges & Stock Pot Ranges
- Models in series
- 2
- Market
- Europe & International
- Certification
- CE
- Gas
- G20 / G30/G31
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Total kW | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|
| CP-USP-1 | G20 / G30/G31 | 8 | 46.2×63×57cm | 40 kg | 50×64×55cm | 45 kg | |
| CP-USP-2 | G20 / G30/G31 | 16 | 46.2×115×57cm | 75 kg | 50×115×55cm | 83 kg |

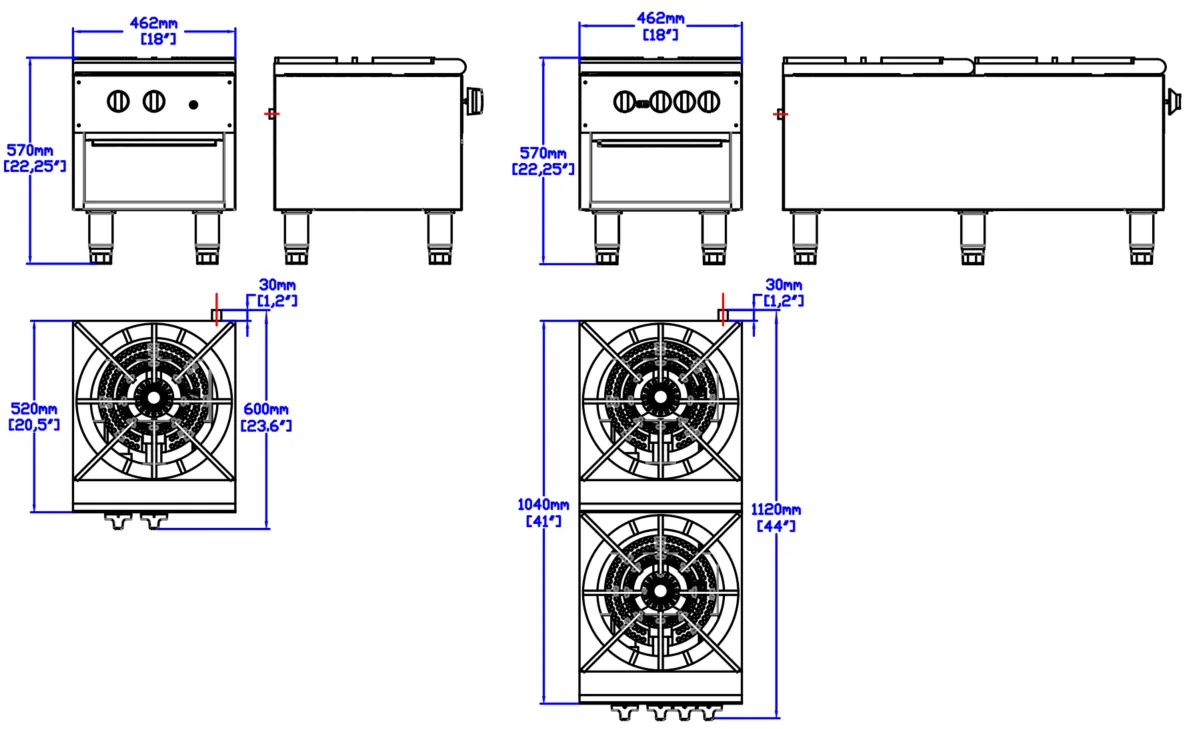

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- R3/4 rear gas connections. Inlet pressure as below:
- G20 at 20mbar - I2H.I2E and I2E+
- G30/G31 at 30mbar - I3B/P(30)
- G30 at 28-30mbar G31 at 37 mbar - I3+(28-30-37)
- 6" clearance required at both sides and rear from combustible construction.
- This appliance shall be installed in conformity with the current regulations and use only in a well-ventilated location
