Ranges & Stock Pot Ranges
Electric Ranges · 208/240V
24" & 36" · static or convection oven
Electric ranges with sealed hot plates or griddle tops over a static (ER) or convection (ECR) oven.
Certification
ETLETL Sanitation
14 models
CP-ER24CP-ECR24CP-ER24-12GCP-ECR24-12GCP-ER24-24GCP-ECR24-24GCP-ER36CP-ECR36CP-ER36-12GCP-ECR36-12GCP-ER36-24GCP-ECR36-24G+2 more
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 9" sealed round plates, 2 kW each; griddle 4 kW per 12"
- Static oven (ER) or convection oven (ECR)
- Oven thermostat 150–550°F (66–288°C)
- Pull-out crumb tray; 10" stainless backsplash
- 208V or 240V, 1 or 3 phase
At a glance
- Product family
- Ranges & Stock Pot Ranges
- Models in series
- 14
- Market
- North America
- Certification
- ETL, ETL Sanitation
- Electrical
- 208V / 240V
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Voltage | Heating Power | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|
| CP-ER24 *CP-ECR24 | 208V / 240V | 13 kW | 24"×30.8"×59"61×78.2×150cm | 227 lbs / 103 kg | 27.6"×36.6"×43.7"70×93×111cm | 312 lbs / 142 kg | |
| CP-ER24-12G *CP-ECR24-12G | 208V / 240V | 13 kW | 24"×30.8"×59"61×78.2×150cm | 306 lbs / 139 kg | 27.6"×36.6"×46.9"70×93×119cm | 392 lbs / 178 kg | |
| CP-ER24-24G *CP-ECR24-24G | 208V / 240V | 13 kW | 24"×30.8"×59"61×78.2×150cm | 315 lbs / 143 kg | 27.6"×36.6"×46.9"70×93×119cm | 401 lbs / 182 kg | |
| CP-ER36 *CP-ECR36 | 208V / 240V | 17 kW | 36"×30.8"×59"91.5×78.2×150cm | 319 lbs / 145 kg | 39.4"×36.6"×43.7"100×93×111cm | 434 lbs / 197 kg | |
| CP-ER36-12G *CP-ECR36-12G | 208V / 240V | 17 kW | 36"×30.8"×59"91.5×78.2×150cm | 365 lbs / 166 kg | 39.4"×36.6"×46.9"100×93×119cm | 480 lbs / 218 kg | |
| CP-ER36-24G *CP-ECR36-24G | 208V / 240V | 17 kW | 36"×30.8"×59"91.5×78.2×150cm | 411 lbs / 187 kg | 39.4"×36.6"×46.9"100×93×119cm | 526 lbs / 239 kg | |
| CP-ER36-36G *CP-ECR36-36G | 208V / 240V | 17 kW | 36"×30.8"×59"91.5×78.2×150cm | 435 lbs / 198 kg | 39.4"×36.6"×46.9"100×93×119cm | 552 lbs / 251 kg |

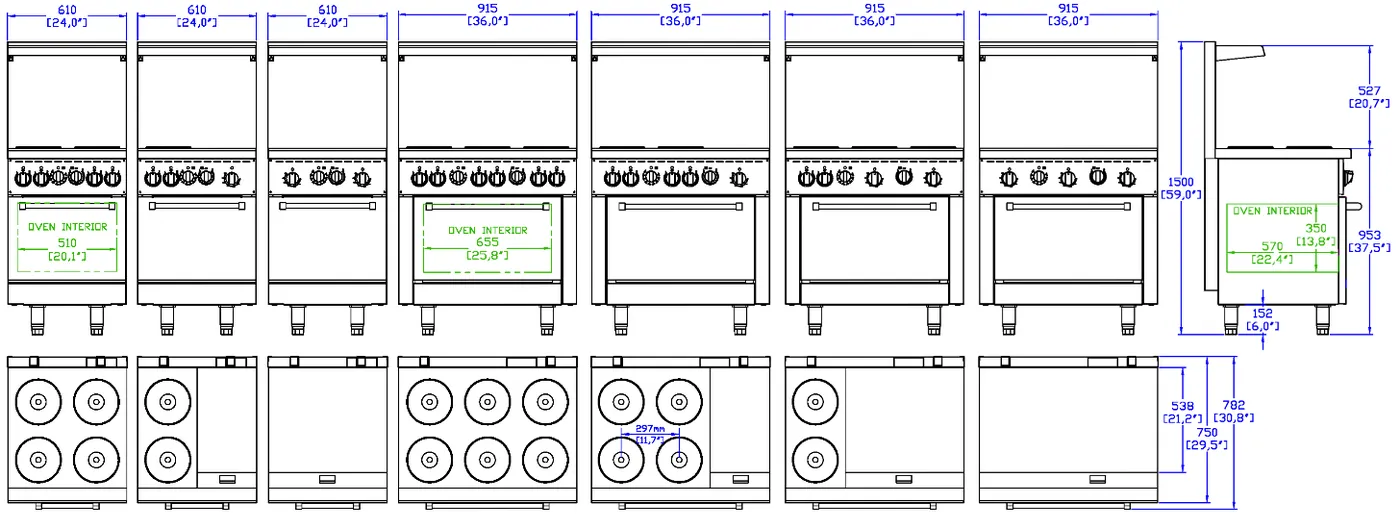

Dimension drawing
Open full size
Installation notes
- For use only on non-combustible floors; legs or casters are required
- 0" clearance from non-combustible surfaces; 6" (152 mm) clearance from combustible surfaces
- For commercial installation only; not intended for household use.
- Use copper wire only, suitable for at least 90°C (194°F)
- Adequate ventilation is required
- 208V or 240V, 1- or 3-phase power supply; select before ordering
Options & accessories
- Extra oven rack
- Set of four casters (two locking)
- Chrome griddle top
- Mount kit for salamander broiler (36" models only)
- 208V/3P, 208V/1P, 240V/3P or 240V/1P
- ER static oven without motor/fan or *ECR convection oven with motor/fan
