Europe & Intl.Half-Size Gas Convection Oven
27,000 BTU/h · single or double stack
1 model
Details
Convection & Speed Ovens
Gas Convection Ovens
Full size · single or double stack · 54,000 BTU/h
Full-size gas convection ovens that cut cooking times by 20–30% compared with static ovens.
Certification
CSANSF
1 model
CP-COG
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 54,000 BTU/h (15.8 kW) in-shot burners
- Two-speed 1/2 hp fan motor
- Temperature range 150–500°F (66–260°C)
- 5 racks, 10 rack positions; porcelain enamel interior
- Independent doors with full-view windows
- Control panel drops down for easy service
At a glance
- Product family
- Convection & Speed Ovens
- Models in series
- 1
- Market
- North America
- Certification
- CSA, NSF
- Gas
- NG/LP
- Electrical
- 120V/60Hz/1phase · 120V/60Hz/1phase*2
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Total BTU | Electrical | Overall Dimension | Internal Cavity | Add to inquiry |
|---|---|---|---|---|---|---|
| CP-COG single | NG/LP | 54,000 | 120V/60Hz/1phase | 38"×44.5"×61.7"96.5×113×157cm | 29"×19.6"×22.5"74×50×57cm | |
| CP-COG Double | NG/LP | 54,000*2 | 120V/60Hz/1phase*2 | 38"×44.5"×68.8"96.5×113×175cm | 29"×19.6"×22.5"*2 74×50×57cm*2 |

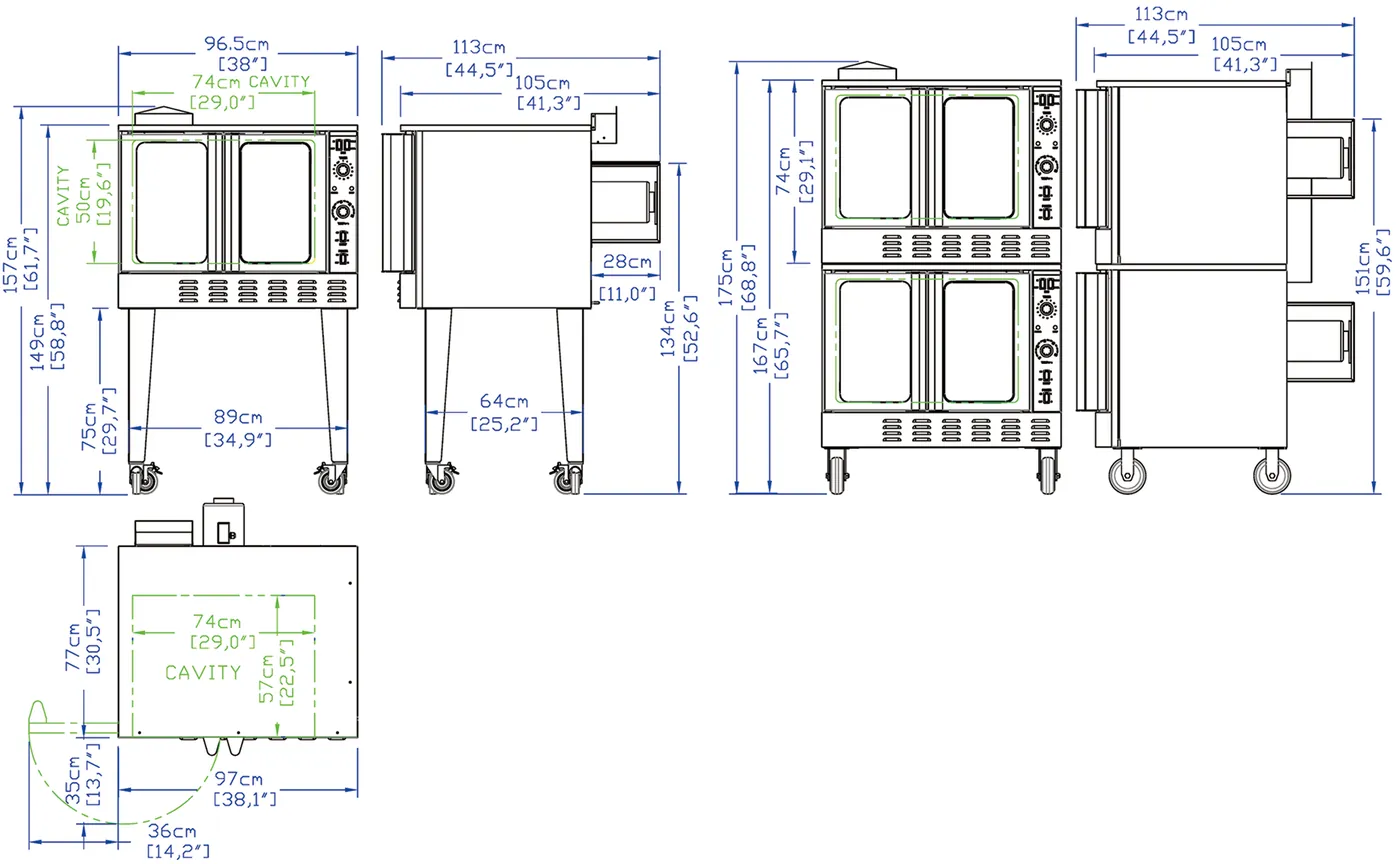

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- NEMA 5-15P 120 volt cord & plug supplied with Oven (North America). Other voltages, frequencies and plug types must be specified when ordering
- 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C. (1/2 PSI)
- Natural gas: operating pressure 3.5" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- An adequate ventilation system is required for Commercial Cooking Equipment
Options & accessories
- CP-COG Single = CP-COG and CO-LK. CP-COG Double = COG*2 and CO-SK
- COG Single includes an oven body plywood box and a single kits carton. COG Double includes two oven body plywood boxes and a double kits carton
- Single kits: 4 steel legs and four casters with locking
- Double Kits: 4 heavy duty 6" casters (2 with locking), Connect kits and long Flue
- Counter top foot (4 pcs). 2. Steel frame (Stainless Steel or Black paint)
Quote this series with your market configuration
Tell us the models, quantities, gas type or voltage, and destination. We reply with pricing, spec sheets and certification details.
