North AmericaGas Convection Ovens
Full size · single or double stack · 54,000 BTU/h
1 model
Details
Convection & Speed Ovens
Electric Convection Ovens
Full size · 10 kW · 208V / 240V
Full-size electric convection ovens, single or double stacked, for kitchens without gas.
Certification
ETLETL Sanitation
2 models
CP-COE-208CP-COE-240
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 10 kW, three high-power heating elements
- 208V or 240V, 60 Hz, 1 or 3 phase
- Two-speed 1/2 hp fan motor
- Temperature range 150–500°F (66–260°C)
- 5 racks, 10 rack positions; porcelain enamel interior
At a glance
- Product family
- Convection & Speed Ovens
- Models in series
- 2
- Market
- North America
- Certification
- ETL, ETL Sanitation
- Electrical
- 208V/60Hz · 240V/60Hz
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Total Watts | Power Supply | Amps 1Phase/3phase | Overall Dimension | Internal Cavity | Add to inquiry |
|---|---|---|---|---|---|---|
| CP-COE-208 | 10,000 | 208V/60Hz | 53A/31A | 38"×44.5"×61.7"96.5×113×157cm | 29" xH19.6"×22.5"74×50×57cm | |
| CP-COE-240 | 10,000 | 240V/60Hz | 46A/27A | 38"×44.5"×61.7"96.5×113×157cm | 29"×19.6"×22.5"74×50×57cm |

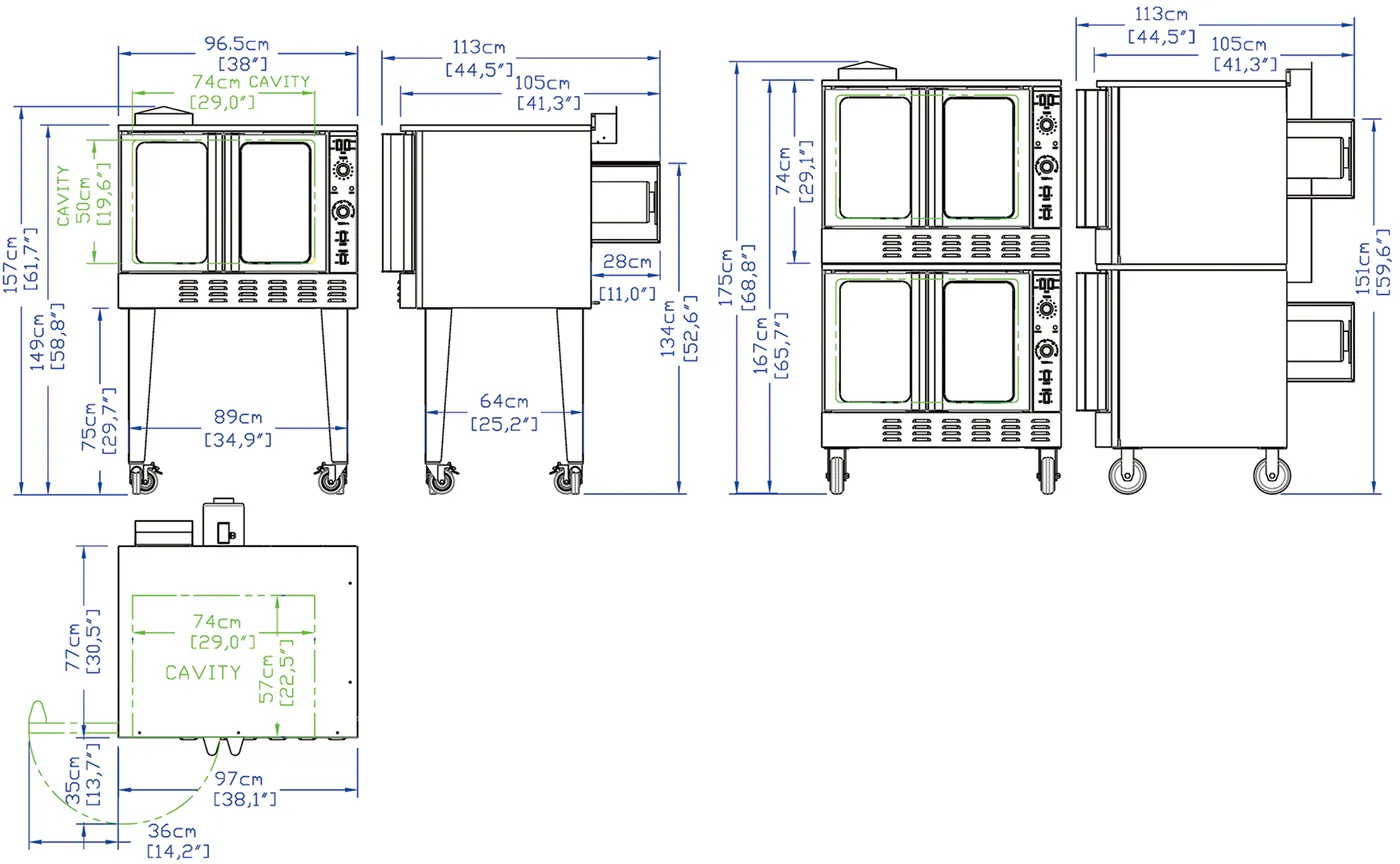

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- Adequate ventilation is required
- Select voltage, phase and frequency before ordering
- No plug; hard-wired connection by operator
- 1" clearance at both sides and 3" at rear adjacent to combustible construction
- 3" rear clearance adjacent to non-combustible construction
- 208V or 240V (North American), or other voltage and frequency must be selected before ordering
Options & accessories
- Single oven (CP-COE + CO-LK): an oven-body plywood box and a single-kit carton
- Double stack (CP-COE + CO-SK): two oven-body plywood boxes and a double-kit carton
- Single kits: 4 steel legs and four casters with locking
- Double kits: 4 heavy-duty 6" casters (2 locking), connection kits and long flue
- Countertop foot (4 pcs)
- Steel frame in stainless steel or black paint
Quote this series with your market configuration
Tell us the models, quantities, gas type or voltage, and destination. We reply with pricing, spec sheets and certification details.
