Griddles
Thermostatic Griddles with Safety Valve
24" – 60" · 1" plate
Independent snap-action thermostats with a safety valve for fast recovery and response.
Certification
CSANSF
4 models
CP-G24-TCP-G36-TCP-G48-TCP-G60-T
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- Independent snap-action thermostatic controls
- Safety valve on each section
- 1" thick griddle plate
- Thermostat range 200–450°F (93–232°C)
- 30,000 BTU/h per 12"; 60,000–150,000 BTU/h total
- Shipped for natural gas; LP conversion kit included
At a glance
- Product family
- Griddles
- Models in series
- 4
- Market
- North America
- Certification
- CSA, NSF
- Gas
- NG / LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Burners | Total BTU | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| CP-G24-T | NG / LP | 2 | 60,000 | 24"×28.7"×15.5"60.9×72.8×39.4cm | 192 lbs / 71 kg | 27.5"×35.5"×19.25"70×85×49cm | 240 lbs / 109 kg | |
| CP-G36-T | NG / LP | 3 | 90,000 | 36"×28.7"×15.5"91.4×72.8×39.4cm | 273 lbs / 100 kg | 39.5"×35.5"×19.25"100×85×49cm | 338 lbs / 154 kg | |
| CP-G48-T | NG / LP | 4 | 120,000 | 48"×28.7"×15.5"122×72.8×39.4cm | 348 lbs / 158 kg | 51.25"×35.5"×19.25"130×85×49cm | 424 lbs / 193 kg | |
| CP-G60-T | NG / LP | 5 | 150,000 | 60"×28.7"×15.5"153×72.8×39.4cm | 484 lbs / 220 kg | 63"×35.5"×19.25"160×85×49cm | 567 lbs / 258 kg |

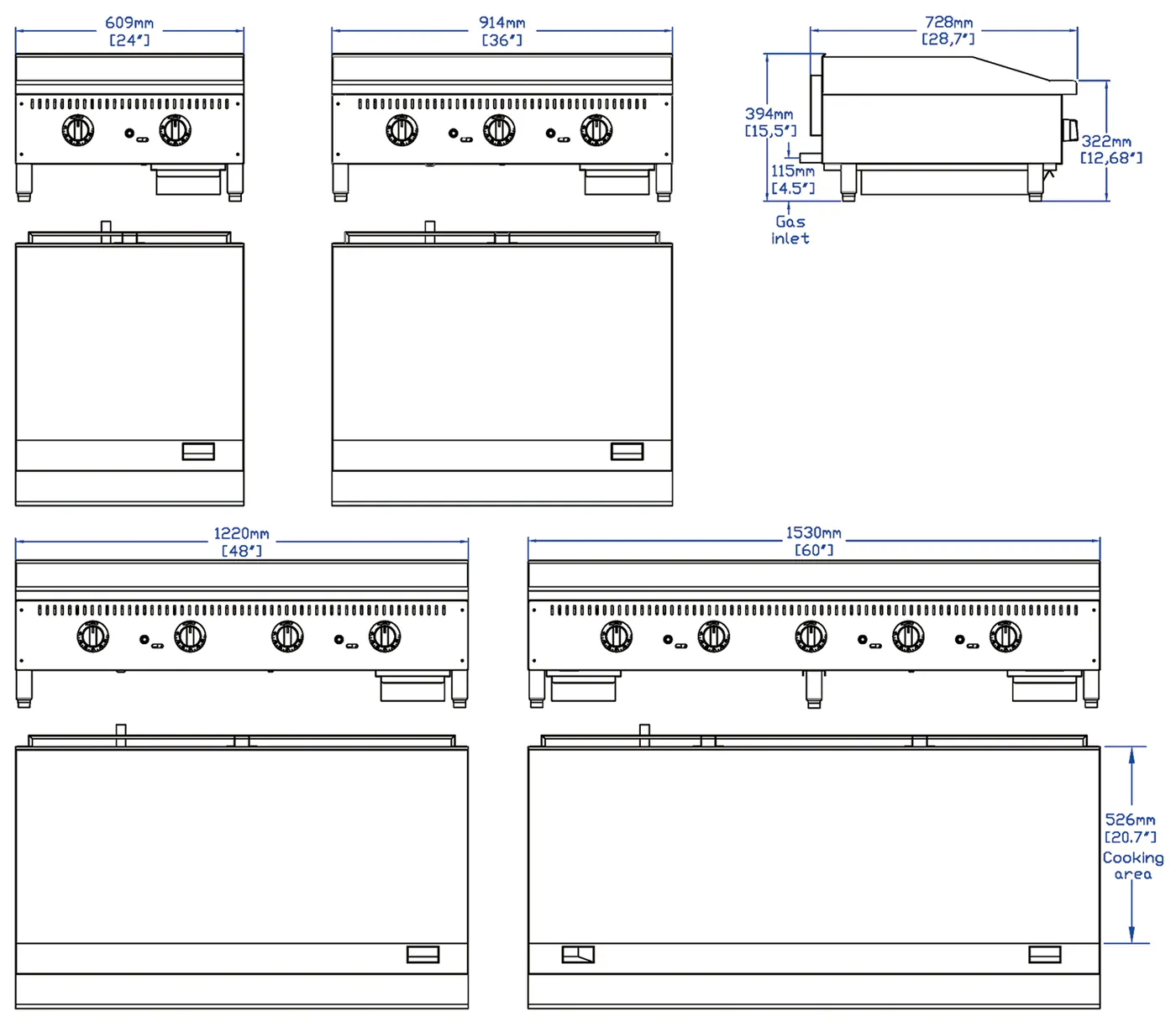

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C.(1/2 PSI)
- Natural gas: operating pressure 4.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- A gas pressure regulator supplied with unit must be installed
- An adequate ventilation system is required for Commercial Cooking Equipment
- 6" clearance required at both sides and rear from combustible construction.
