Deep Thermostatic Griddles with Safety Valve
24" – 72" · 24.6" depth
Our deepest thermostatic griddle, with a 1" plate and snap-action controls for heavy-duty service.
Certification
ETLNSF
5 models
CP-G24-DTCP-G36-DTCP-G48-DTCP-G60-DTCP-G72-DT
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- 24.6" deep cooking surface, 1" plate
- Independent snap-action thermostats with safety valve
- Thermostat range 200–450°F (93–232°C)
- 60,000–180,000 BTU/h total input
- Fully welded back and side splash guards
- Shipped for natural gas; LP conversion kit included
At a glance
- Product family
- Griddles
- Models in series
- 5
- Market
- North America
- Certification
- ETL, NSF
- Gas
- NG / LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Burners | Total BTU | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| CP-G24-DT | NG / LP | 2 | 60,000 | 24"×33"×15.5"60.9×83.8×39.4cm | 192 lbs / 71 kg | 27.5"×37.4"×19.25"70×95×49cm | 240 lbs / 109 kg | |
| CP-G36-DT | NG / LP | 3 | 90,000 | 36"×33"×15.5"91.4×83.8×39.4cm | 273 lbs / 100 kg | 39.5"×37.4"×19.25"100×95×49cm | 338 lbs / 154 kg | |
| CP-G48-DT | NG / LP | 4 | 120,000 | 48"×33"×15.5"122×83.8×39.4cm | 348 lbs / 158 kg | 51.25"×37.4"×19.25"130×95×49cm | 424 lbs / 193 kg | |
| CP-G60-DT | NG / LP | 5 | 150,000 | 60"×33"×15.5"153×83.8×39.4cm | 484 lbs / 220 kg | 63"×37.4"×19.25"160×95×49cm | 567 lbs / 258 kg | |
| CP-G72-DT | NG / LP | 6 | 180,000 | 72"×33"×15.5"183×83.8×39.4cm | 594 lbs / 270 kg | 74.8"×37.4"×19.25"190×95×49cm | 682 lbs / 310 kg |

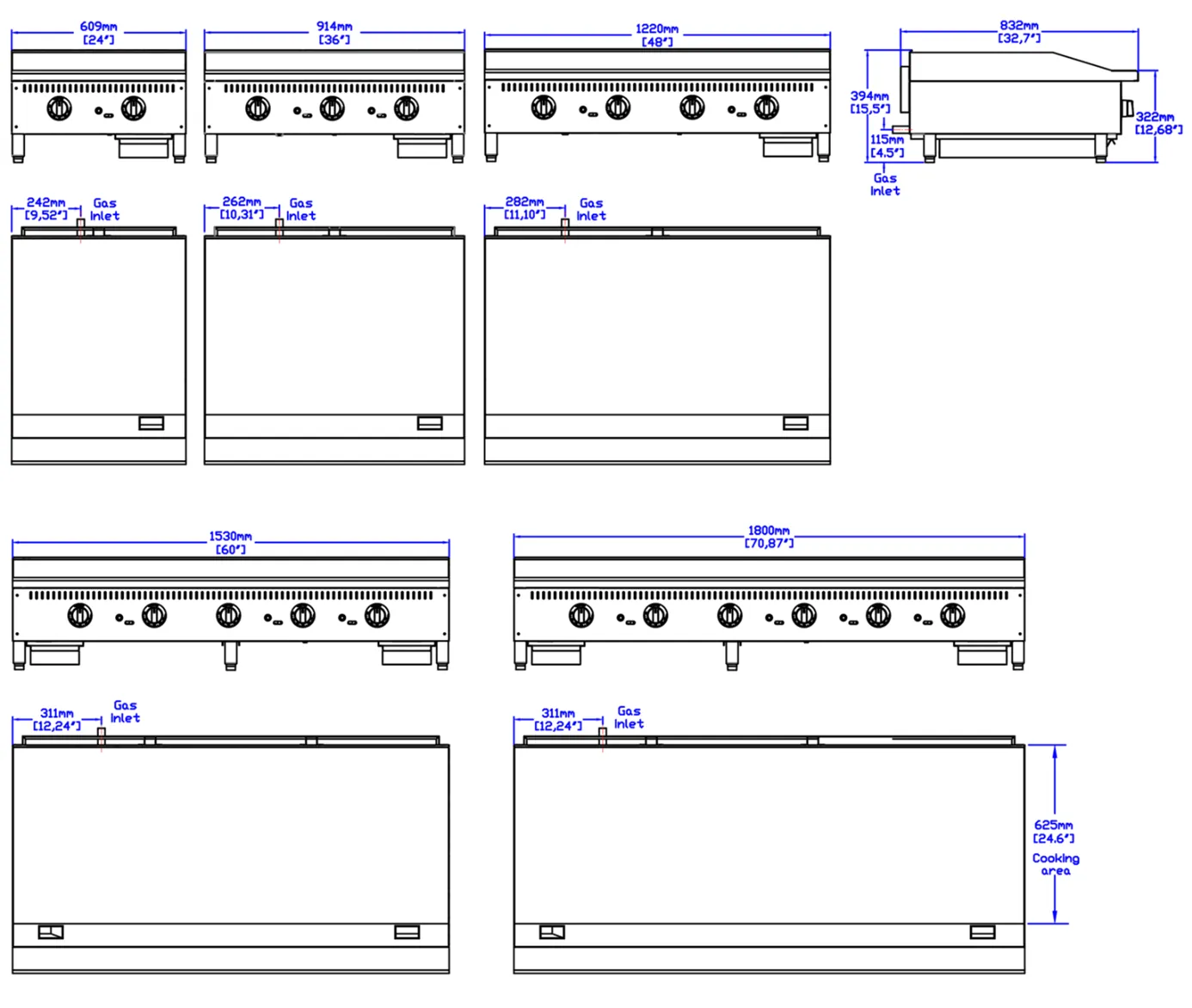

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C.(1/2 PSI)
- Natural gas: operating pressure 5.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- A gas pressure regulator supplied with unit must be installed
- An adequate ventilation system is required for Commercial Cooking Equipment
- 6" clearance required at both sides and rear from combustible construction.
