Heavy-Duty Gas Charbroilers
24" – 48" · burner every 6"
Straight burners every 6" and heavy cast iron grates for a tight, even heat pattern under heavy use.
3 models
CP-CB24-HCP-CB36-HCP-CB48-H
- Spec sheet & drawings on request
- Private label available
- Built for US & Canada
Key features
- Straight burner every 6", 20,000 BTU/h each
- Heavy-duty reversible cast iron grates
- Adjustable pilot lit from the front
- Widths 24", 36" and 48"
- Removable full-width crumb tray
At a glance
- Product family
- Charbroilers
- Models in series
- 3
- Market
- North America
- Gas
- NG / LP
- Drawings
- Dimension drawing below
Technical data
Tap + to add an individual model to your inquiry list. Imperial and metric values as published in our catalog.
| Model | Gas Type | Burners | Total BTU | Overall Dimensions | Net Weight | Package Size | Shipping Weight | Add to inquiry |
|---|---|---|---|---|---|---|---|---|
| CP-CB24-H | NG / LP | 4 | 80,000 | 24"×28.7"×15.2"60.9×72.8×38.5cm | 111 lbs / 50 kg | 27.5"×33.5"×19.25"70×85×49cm | 158 lbs / 72 kg | |
| CP-CB36-H | NG / LP | 6 | 120,000 | 36"×28.7"×15.2"91.4×72.8×38.5cm | 154 lbs / 70 kg | 39.5"×33.5"×19.25"100×85×49cm | 213 lbs / 97 kg | |
| CP-CB48-H | NG / LP | 8 | 160,000 | 48"×28.7"×15.2"122×72.8×38.5cm | 198 lbs / 90 kg | 51.25"×33.5"×19.25"130×85×49cm | 269 lbs / 122 kg |

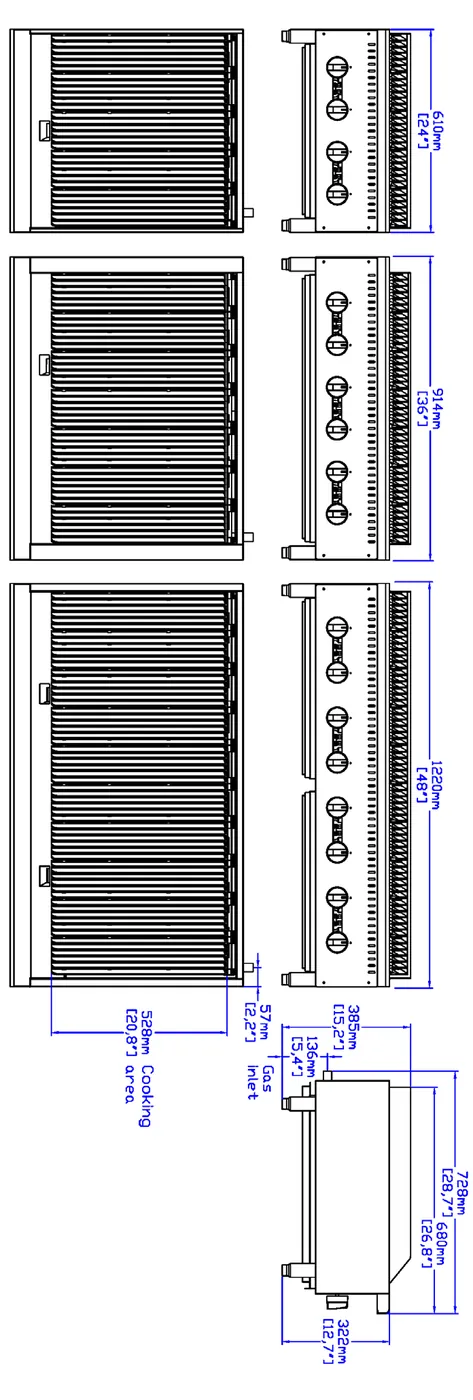

Dimension drawing
Open full size
Installation notes
- For commercial installation only; not intended for household use.
- 3/4" NPT rear gas connections. Supply gas pressure not to exceed 14" W.C.(1/2 PSI)
- Natural gas: operating pressure 4.0" W.C., recommended supply 7–9" W.C.
- Propane: operating pressure 10.0" W.C., recommended supply 11–12" W.C.
- A gas pressure regulator supplied with unit must be installed
- An adequate ventilation system is required for Commercial Cooking Equipment
- 6" clearance required at both sides and rear from combustible construction.
